Explosion Proof Flood Light - 400 Watt Metal Halide - 18 Inch - Class 1 Div 1 C&D
The EPL-18C-1X4 Explosion Proof Portable Tank Light from Magnalight is rated Class 1 Division 1 Groups C & D and uses a 400 watt metal halide lamp to produce 75,000 lumens of light capable of illuminating 20,000 square feet of work area.

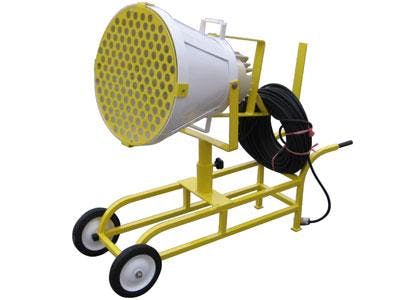

The EPL-18C-1X4 explosion proof portable tank light is U.L. approved Class 1, Division 1 for Groups C and D and provides 20,000 square foot of coverage with a 75,000 lumen light output. This unit consists of a 400 watt metal Halide lamp mounted on top of an aluminum cart with solid rubber wheels and provides a portable and easily mobile source of hazardous location illumination. Often simply referred to as a “tank light”, this unit is considered universal due to its ability to be passed through any conventional manhole such as those found in petrochemical containers and ship storage tanks. This 17 7/8” diameter metal halide lamp fixture is considered a universal tank light as it can be easily passed through most conventional manholes and entryways 18” or larger in size.
EPL-18C-1X4 Explosion Proof Tank LightQuick SummaryUL Listing: United States | Class 1 Division 1, Groups C and D |
Dimensions: 17 7/8" Light head | Class 2 Div 1 & 2, Groups E, F, G |
Weight: 135 Lbs | Class 3, Division 1 & 2 |
Total Watts: 400 watts | Confined Area Suitable |
Voltage: Configurable 120 volts @50/60hz or 230/240 VAC | 400 Watt Metal Halide |
Operating Temp Range: T3B Rated | UL Certified U.S. Standards |
LED Lamp Life Expectancy: 20,000+ Hours (Metal Halide Average) | 75,000 Lumens- 20,000 Sq Ft Coverage |
Mounting: Non Sparking Aluminum Cart | ECP1523 Class 1 explosion proof plug |
Wiring: 250 feet 14/3 SOOW Cord- ECP1523 Explosion Proof Plug | T3B Temp Rating |
