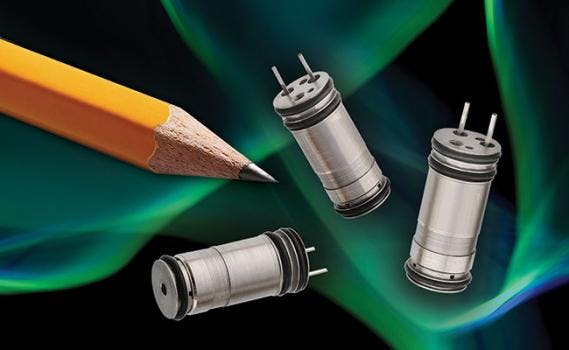

These 8 mm direct actuating valves have an extremely fast response time for accurate dosing of minute volumes with the same long service life.
Designed with a patented valving principle using Clippard's stainless steel "spider", it has only one moving part that travels less than 0.007-in. These valves have very low moving weights so they are extremely quiet and exude a very low vibration. Ideal for many applications due to their subminiature size and low energy consumption.
This series of valves can be customized for unique requirements.
Check it out here: http://www.clippard.com/link/ned2164345
- Valve Type: 3-Way, Normally-Closed
- Medium: Air, Water, Gas & Compatible Fluids
- Nominal Power: 0.55 W
- Response Time: <5 ms
- Temperature Range: 32 to 122°F (50?C)
- Electrical Connection: Terminal Pins
- Voltage: 12 or 24V DC
- Mounting: Cartridge
- Manifold: STM-01 (#10-32), M-STM-01 (M5)
- Weight: 0.15 oz.
- Wetted Materials: Stainless Steel
- Seal Material: FKM standard. EPDM available.
Features:
- <5 ms response time
- 1,000,000,000+ cycle life
- Extremely small dead volume
- Low vibration and noise
- Exceptional repeatability and reliability
- Compact and ideal for sub-assemblies
- 100% tested
