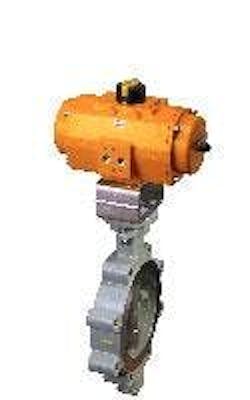

Assured Automation announces its new line of High Performance Butterfly Valves. The HP Series offers Class VI shut-off and an advanced seat design which provides a bi-directional interference and pressure assisted seal. These valves are available in sizes 2? through 12? with a pressure rating up to 285 PSI for 150 class and 740 psi for 300 class valves. Body is available in carbon or stainless steel with Wafer or Lugged flanged end connections.
The HP Series disc is engineered for a quick release from the seat, which reduces torque and seat wear. Machined position stops on the body locate the disc in the seat to achieve maximum seat and seal life. A full range of accessory items are available including limit switches, solenoid valves, positioners and manual override devices. A butterfly valve well-suited for applications in many markets worldwide, the HP Series meets the following world standards: ISO 9001, MS-SP67 / API 609, Canada registration No CRN 0C0569.9C valves, CE/PED approval by LLOYDS certification No RPS0160308/01.
Assured Automation’s HP Butterfly Valves have been used successfully in many industrial applications, including refineries, chemical processing, pulp and paper mills as well as steam and HVAC applications.
- sizes 2? through 12?
