Rugged LED Floodlights

Oct. 28, 2016
Designed to withstand challenging environments.

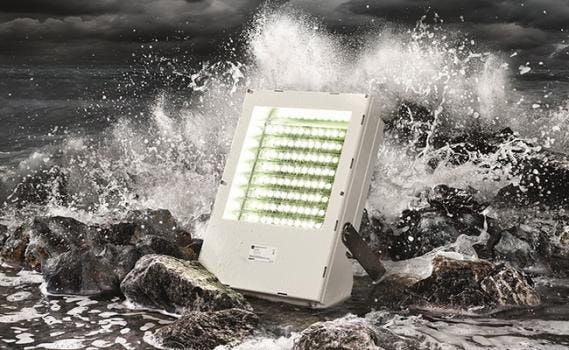

Two new floodlight series bring light to challenging environments such as chemical, food and oil and gas extraction. The 6125 series (for zone 1) and 6525 series (for zone 2) floodlights offer a service life of 50,000 hours and feature high corrosion resistance supported by a robust IP66/67-rated enclosure.



This latest generation of flexible floodlights feature high-quality TIR lenses to minimize scattered light and glare effects and enable light distribution focused on angles of 10, 40 or 120 deg.



The new 6125 series (for zone 1) and 6525 series (for zone 2) floodlights achieve excellent luminous flux: 21,000 lm in versions with 210 W power consumption and 12,000 lm in 120 W models. With this luminaire efficiency of 100 lm/W, they are not only far more efficient than conventional HID lights, but also require significantly less maintenance.



The lens panel modules are equipped with hinges for easy installation, maintenance and repair of the removable components.



Floodlights' superior durability fully enables them to sustain challenging environments e.g. in the chemical industry or in oil and gas extraction over the long term. Their high tolerance for ambient temperatures in a very broad range from -40 °C to + 60 °C is a stand-out feature in this product class. Featuring a corrosion-resistant body and comparably low weight, these floodlights are an especially good choice for onshore and offshore applications. Special designs with heat sinks made from sea-water-resistant aluminum are also available.





Service Life:

  • 50,000 hours



Ambient Temp. Range:

  • -40 to 60°C



Service Life:

  • 50,000 hours



Ambient Temp. Range:

  • -40 to 60°C
