    YPR-45-15-60 Series Three-Axes Positioning Stages

    June 29, 2022
    Optimal Engineering Systems' YPR-45-15-60 Series of three-axes positioning stages features four motor options.
    Related To: Optimal Engineering Systems, Inc.
    666730c694f10f0008370ee1 830 350

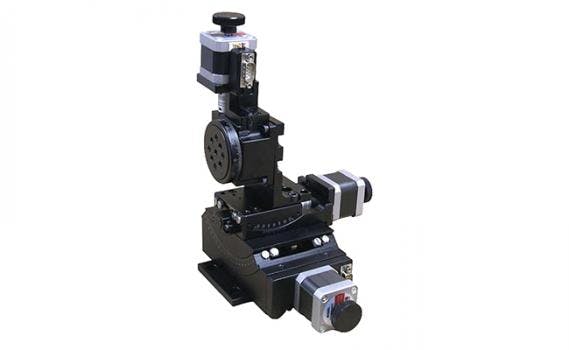

    The YPR-45-15-60 Series high-precision three-axes positioning stages are ideal choices for laser scanning, drilling, and machining, reverse engineering, inspection, assembly, measurements, tracking, and positioning. The series features four motor options: Stepper Motor driven, Three Phase-Servo Motor driver, DC Servo Motor Driven, and Stepper Motor Driven with Quadrature Optical Encoders for position verification.



    The series was developed through the integration of a 60 mm diameter rotary stage (upper axis) capable of 360 degrees of continuous operation and two goniometers (middle and lower axes) each having travel ranges of +/- 15 degrees and +/- 45 respectively.



    The rotary axis is equipped with a HOME switch. The other two axes are equipped with positive and negative limit switches to signal the motion controller that end of travel is reached. All axes have calibrated scales for visual inspection.

    • YPR-45-15-60-01: Three-axis Stepper Motor Driven Yaw, Pitch, and Roll Stage, Table Diameter 60 mm
    • YPR-45-15-60-02: Three-axis Three Phase Brushless Servo Motor with Quadrature Incremental Optical Encoder Driven Yaw, Pitch, and Roll Stage, Table Diameter 60 mm
    • YPR-45-15-60-03: Three-axis DC Servo Motor with Quadrature Incremental Optical Encoder Driven Yaw, Pitch, and Roll Stage, Table Diameter 60 mm
    • YPR-45-15-60-04: Three-axis Stepper Motor Driven Yaw, Pitch, and Roll Stage with 500 Cycles per Revolution Quadrature Optical Encoder Mounted at the back of the Stepper Motor, Table Diameter 60 mm
