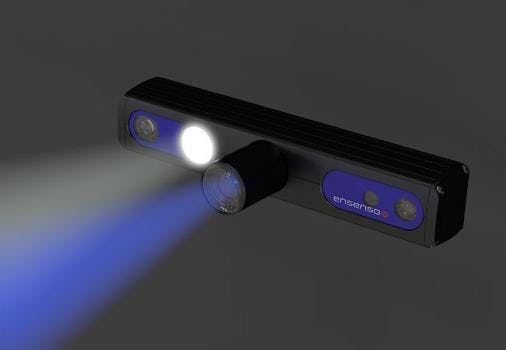

Ensenso C 3D Stereo Vision Camera

With Ensenso C, IDS presents a stereo vision camera that generates 3D point clouds and delivers 2D images in color (RGB) thanks to an integrated image sensor. This enables realistic 3D images and supports subsequent like sorting tasks.



Its compact housing is completely enclosed and complies with protection class IP65/67. This protects the components from environmental influences and vibrations. In addition, the camera is delivered pre-configured and is suitable for the automation of many industrial processes, such as in quality control, on assembly lines or for picking tasks.



The 3D camera is available with a baseline of approx. 9 in. (240 mm) with additional 18 in. (455 mm) models being offered in the future. Thanks to the combination of the 200 W projector power and the high resolution of 5 mp, the camera delivers precise data even in large-volume applications. With the large baseline and small field of view, the models achieve a reproducible Z-accuracy of 0.008 in. (0.2 mm) at a 6.5 ft (2 m) object distance.



Moreover, the camera is designed in such a way that temperature-related deviations of the depth values are reduced to a minimum: Deviations at 12 in. (300 mm) distance at 10°C temperature change less than 0.003 in. (0.075 mm), for example. A diffused white light LED also supports 2D color imaging in applications with changing ambient light conditions.

• 200 W projector power
• Depth accuracy
• Compact dimensions
• Industrial grade
• IP65/67 protection
• Color sensor

Applications:

• Detect & Recognize
• Bin Picking
• De-palletizing
• Test & Measuring

ModelEnsenso C57-SEnsenso C57-M3D SystemProjected Texture Stereo VisionStereo Sensors2472 x 2064 (5 mp), Global ShutterRGB Sensor2 MP Global ShutterProjection200 W LED projector with C-Mount3D Point Clouds/secUp to 10Stereo Baseline9 in. (240 mm)18 in. (455 mm)Z Accuracy0.004 in. @ 3 ft (0.1 mm @ 1 m)0.008 in. @ 6.5 ft (0.2 mm at 2 m)Focus Distance38 in. (975 mm)73 in. (1,850 mm)Focal Length/
Working Distance0.2 in.; 20 to 200 in.
(6 mm; 500 to 5,000 mm)0.2 in.; 26 to 200 in.
(6 mm; 650 to 5,000 mm)0.3 in.; 26 to 90 in.
(8 mm; 650 to 2,200 mm)0.3 in.; 35 to 200 in.
(8 mm; 900 to 5,000 mm)0.5 in.; 30 to 50 in.
(12 mm; 800 to 1,300 mm)0.5 in.; 50 to 140 in.
(12 mm; 1,300 to 3,600 mm)InterfacesGigabit Ethernet1x Flash/GPIO1x TriggerPower Supply24 V DC or PoE++ (802.3bt) 90 WHousingAluminiumProtection ClassIP65/67Dimensions11 x 2 x 4 in.
(290 x 58 x 100 mm)20 x 2 x 4 in.
(506 x 58 x 100 mm)Weight2.5 lb. (1,160 g)3.5 lb. (1,660 g)
