The ALL-SAFE PRO is an extension of the ATPOL series of energized testing instruments. It is a permanently installed accessory that offers significant advantages over conventional methods for the temporary monitoring and measuring of power systems.
Manufactured in the USA and conforming to UL STD 61010-1:2004, it is certified to CAN/CSA C22.2 number 61010-1:2004 and complies with the CE requirements for a rated input of 1000V, measurement category III. For motors or generators over 1,000V, it can be connected via potential transformers and current transformers.
The ALL-SAFE PRO provides the signals necessary to determine a motor's condition with a minimum of risk, error, and trouble. No need to suit up in bulky protection gear. Test setup is fast and the number of tests performed in a day is almost unlimited. The actual sampling takes about one minute. In addition, using the ALL-SAFE PRO will eliminate connection errors. Installation is very easy and no special tools are needed. Each installation can be completed in about one hour.

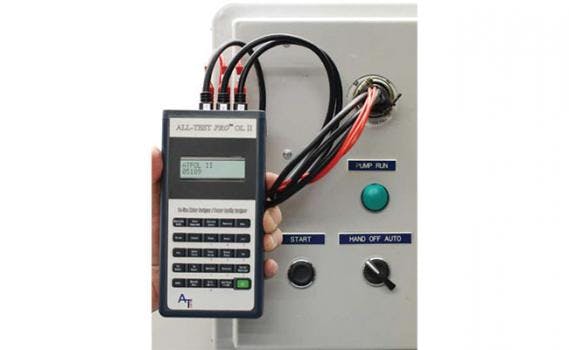

There is no need to open the ALL-SAFE PRO or the Control Panel door to gather data. The output pins are deactivated when not in use to prevent exposure to dangerous voltage. Voltages representing the flow of current are less than 2V on the exposed connector. Shorting of any of the contacts of the exposed connector will not result in damage or voltage exposure. The ALL-SAFE PRO is available for most applications and priced to guarantee a quick return on investment.
- Size: 6 in. W x 4 3/4 in. H x 1 5/8 in. D
- Weight: 0.8 lb.
- Operating Range: 0 - 50°C
- Power Requirement: Nominal power is supplied by attached ATPOL
- Input Voltage Input Range: 1 - 1000V steady-state (direct input)
- Output Voltage: <5V when not connected to ALL-SAFE PRO Adapter
- Frequency Range: 22 - 66 Hz fundamental frequency
