Built on Rockwell Automation's CompactLogix PLC and Hardy's H1459CW Controller, the Dynamic Checkweigher series delivers performance and ultimate flexibility for current and future product inspection needs. System can process between 20 and 350 pieces per min.

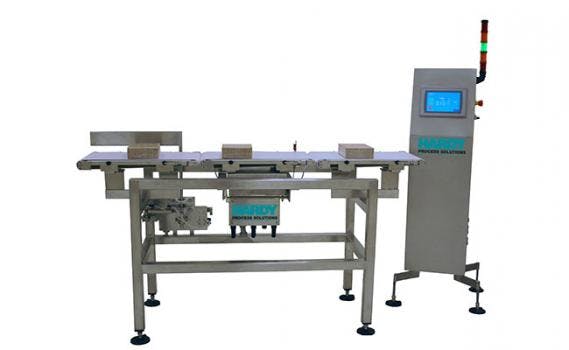

The Hardy Dynamic Checkweigher is a fully automated system designed to weigh items automatically in-motion. The Checkweigher controller can communicate both upstream and downstream across the Connected Enterprise Network. Automated control is done with an embedded Rockwell Automation CompactLogix PLC while communicating with the high performance Hardy HI 4050CW check weighing controller. The resulting high speed check weighing system can process between 20 to 350 pieces per minute.
Each Dynamic Checkweigher has a stainless steel base and cabinet, for maximum durability and easy washdown. Flexible and highly accurate, it weighs products of virtually any shape or size in containers such as boxes, cans, bottles, rigid shrink-wrapped packages or flexible packages. Items compatible with the system include bagged and boxed sugars, raw meats, fruits, vegetables, chemicals, fertilizers, and consumer packaged goods.
Models:
- Dynamic C: a chain weigher for up to 10 kg (22 lbs.) of rigid products, such as bottles, cans, cartons operating at up to 350 units/minute
- Dynamic S: a small belt weigher for up to 10 kg of pouches, trays, direct foods operating at 200 units/minute
- Dynamic I: intermediate belt weigher for up to 22 kg (50 lbs.) of boxes, tubs, ails and bulk foods operating at 60 units/minute
- Dynamic L: a large belt weigher for sacks, kegs, drums, bulk bags up to 90 kg (200 lbs.) operating up to 50 units/min
