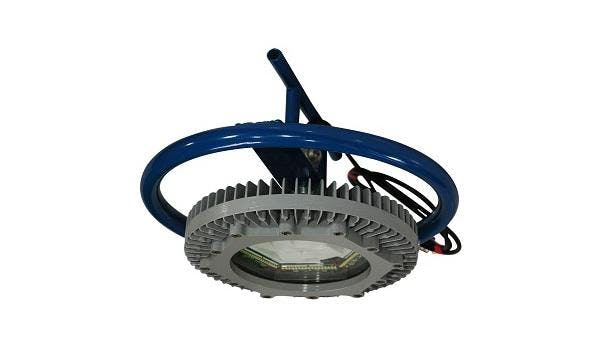

Manhole Mount Explosion Proof LED Illuminator with Cord Reel

Temporary manhole mount light fixture, often referred to as a tank light, provides operators with 12,000 lumens of LED illumination that is ideal for use in tanks, railcars and other locations where entry is through a 18” man-hole opening. The 14” x 16” LED light head is easily adjustable to present 0°, 45°, and 90° angles. The LED lamp and aluminum body give this light excellent durability and resistance to vibrations and impacts.

Lamp Type: LED                                                        Ratings/Approvals

Total Watts: 150                                                      Class 1 Division 1-2, Groups A,B,C,D

Total Lumens: 12,000                                             Class 2 Division 1-2, Groups E,F,G

Lamp Life Expectancy: 50,000+ Hours                Class 3 Division 1-2

Operating Temp Range: T5 Rated                        cETL Certified to UL 844

Color Temp: 6000K                                                  UL 595 Wet Location

Mounting: 18” Manway Support Bracket           cETL cUL Listed for Canada

Voltage: Multi – 100-277V AC 50/60Hz               Paint Spray Booths

Contact us for special requirements
