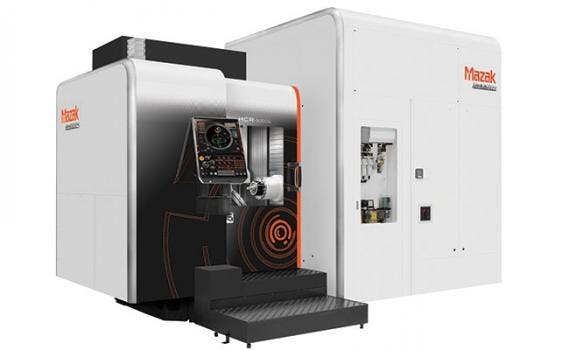

HCR-5000S 5-axis, single-table (S) Horizontal Machining Center provides the aerospace and semiconductor/high-tech industries with numerous technological innovations for efficient small to mid-sized aluminum component processing.
The machine offers a range of high-speed spindle options, from a standard 12,000-rpm spindle up to 30,000-rpm one, and each feature an integral spindle/motor and ballscrew core cooling that minimize vibrations for higher accuracy. A 40-tool Auto Tool Changer, which is expandable to a 160-tool capacity, further boosts productivity with a chip-to-chip tool change time of only 2.8 seconds.
Linear roller guides allow the HCR-5000S to achieve 60-m/min rapid traverse rates, 1G acceleration/deceleration rates in the X and Y axes and 0.8G in its Z axis to significantly shorten overall machining cycle times. Also, with the guides’ low-friction, high-rigidity designs, the machine delivers aggressive feeds and speeds for everything from heavy-duty to high-speed cutting applications.
The machine achieves unmatched precision with its single-table design that incorporates a high-rigidity bed, solid base X-axis construction and roller gear cam systems for the A and C axes. The machine’s extremely accurate tilt/rotary table provides rapid traverse rates of 50 rpm in its C axis and 30 rpm in the A axis. The table positions in 0.0001-degree increments and accommodates parts weighing as much as 500 kg and measuring up to 700 mm in diameter and 644 mm high, depending on the cutting orientation.
In addition to full 5-axis machining capability, the tilt of the table – along with a chip conveyor and flood coolant – ensures efficient chip management and evacuation. To further optimize chip flow, the horizontal spindle orientation also makes it possible to machine a part inverted while a standard 800 L coolant tank accommodates a Niagara coolant configuration. For even higher levels of productivity and unmanned operation, the machine can be outfitted with an automatic two-pallet changer as well as a Mazak Multi-Pallet Pool (MPP) system or be incorporated into a fully automated Mazak PALLETECH System.
Mazak’s MAZATROL SmoothX CNC provides operators with complete control of the HCR-5000S. As the industry’s most capable and powerful control, SmoothX enables 3-D part program visualizations via its touch screen to further improve ease of use in terms of programming and program checking. Cycle times are reduced between 10 percent and 20% and surface finishes improved thanks to the control’s SMOOTH Machining Configuration options such as Seamless Corner Control, Active Vibration Control and Variable Acceleration.
SPECIFICATION
VALUES
Capacity
Maximum Workpiece Diameter
27.560 in / 700 mm
Maximum Workpiece Height
25.340 in / 644 mm
Spindle
Spindle Taper
No.40
Maximum Speed
12000 rpm
Magazine
Number of Tools
40
Rotary Axes
Table Tilt (A axis)
225-deg.
Table Indexing (C axis)
360.0000-deg.
Feed Axes
Travel (X Axis)
28.74 in / 730 mm
Travel (Y Axis)
28.74 in / 730 mm
Travel (Z Axis)
28.74 in / 730 mm
Features:
- Integral spindle/motor design minimizes vibration
- 12,000, 18,000, 25,000 and 30,000 rpm spindle options
- Linear roller guides on X, Y and Z axes
- X, Y and Z-axis ballscrew core cooling for machine stability
- Base X-axis construction and high-rigidity bed ensure high-accuracy positioning
- Center trough with chip conveyor for fast and efficient chip evacuation
- Tilt/rotary table for 0.0001-degree increment positioning
- Automatic tool changer (ATC) options to 160 tools
- 2.8 second chip-to-chip ATC time
- Automatic two pallet changer (2PC), Multi-pallet Pool (MPP) and PALLETECH are all available
- Standard large-capacity coolant tank
