Laser Cutting System

Oct. 28, 2016
OPENCut™ for 2D and 3D bevel laser cutting is a modular solution customizable according to an original equipment manufacturer’s needs.

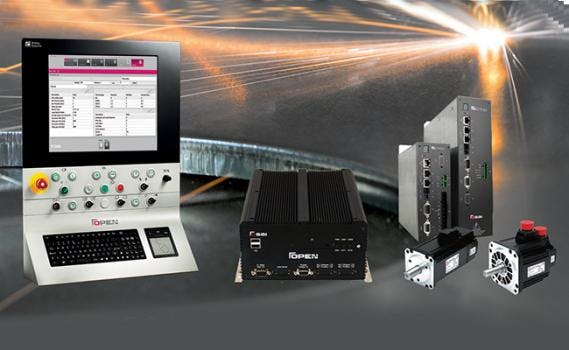

OPENCut for 2D and 3D bevel laser cutting is a modular solution customizable according to an original equipment manufacturer’s needs. The system modules  are specifically designed for the OPEN control OSAI CNC, up to the multi-touch operator panel, drives and I/O systems controlled via EtherCAT or proprietary fieldbuses.



Included in the OSAI system package are: graphic, multi-touch SW oriented HMI with 2D and 3D graphics for program execution control, easy-to-customize machine logic specifically designed for laser cutting machine operations, offset management compensation of bevel cutting parameters, 3D cutting head control, newest version CNC OPENcontrol, drives connected via EtherCAT or proprietary fieldbuses, mutli-tool heads management and many more.



OPENCut is also the ideal CNC hardware/software solution for plasma and oxy-fuel cutting. With similar application features for laser cutting, OPENCut for plasma is designed to optimize startup, productivity and cutting quality. The system comes complete with all elements needed for plasma 2D, bevel and oxy-fuel cutting. The plasma generator system is available in 120, 250 and 420 amp sizes equipped with automatic gas console.

  • HMI and CAM software with 2D and 3D graphics for profile definition, has pre-defined icon libraries and automatic nesting of different profiles.
  • The technological tables integrated in OPENCut is made up of 10 Piercing lines and 10 Cutting lines for each material and thickness.
  • There are functions to export, import, and delete every material in the table database.
  • The technology table parameters are managed using GCODE Macros, customizable both by the machine builder and by the PLC.
