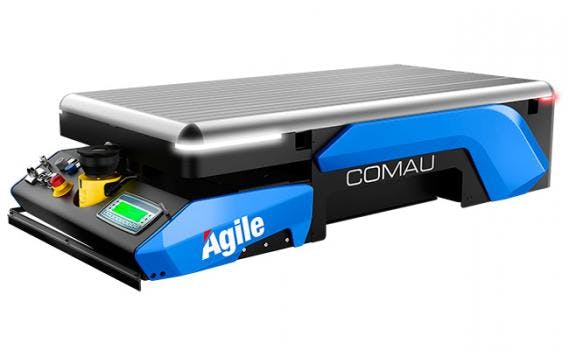

Agile1500 AGV for High Payloads

June 7, 2017
Comau's AGV is modular, scalable, and completely re-configurable handling capacities up to 3,300 lb. (1,500 kg).

Built for deployment across a wide range of manufacturing and non-manufacturing environments, Agile1500 autonomous mobile platform provides a modular and flexible solution to optimize smart factory logistics.



Modular, scalable, and completely re-configurable, Agile1500 can carry up to 3,300 lb. (1,500 kg) with a maximum speed of 5.5 ft (1.7 m/s). With these characteristics, the system can facilitate key manufacturing operations including just-in-time and just-in-sequence production, as well as optimized logistic flows inside the factory, improved warehouse management, and better overall production efficiency.



Agile1500 has key role in the development of a new operating platform imposed by Industry 4.0. It can increase overall plant safety thanks to advanced security features and an integrated laser scanner that stops the AGV upon detection of an obstacle along its route.



Agile1500 is a standard product that is also highly configurable. In addition, it can be fitted with different accessories that enhance its performance, as required by each specific application. For this reason, the versatility of Agile1500 can easily accommodate diverse manufacturing needs and factory layouts. Furthermore, Agile1500 works with multiple navigation systems that use both natural landmarks (walls, objects, etc.) as well as predefined points (magnetic spot and magnetic tape).



  • ?High-performance vehicle
  • Modular design
  • Multipurpose applications
  • Multiple navigation systems
  • ?Complete reconfigurability protects ROI and reduces TCO
  • Full compatibility with other Kollmorgen-based AGV systems
  • Intuitive programming interface
  • Full connectivity and diagnostic Factory 4.0 ready
  • Human-robot collaborative
  • Improved safety and ergonomics compared to traditional solutions
  • Simplified maintenance
 External Dimensions 62 x 28 x 13 in. (1,564 x 713 x 330 mm) (L x W x H) Weight 617 lb. (280 kg) Max. Payload 3,300 lb. (1,500 kg) Max. Speed 1.7 (natural/reflector)/1.2 (magnetic )/1 (backward motion) m/s Positioning Repeatability  +/- 0.4 in. (10 mm) Max. Towing Force 2,100 N Max. Grade 1% Operating Environment Indoor Battery Type Lithium Battery Characteristics 25.6V, 138Ah Power Supply 24V DC Communication CANopen Fieldbus
