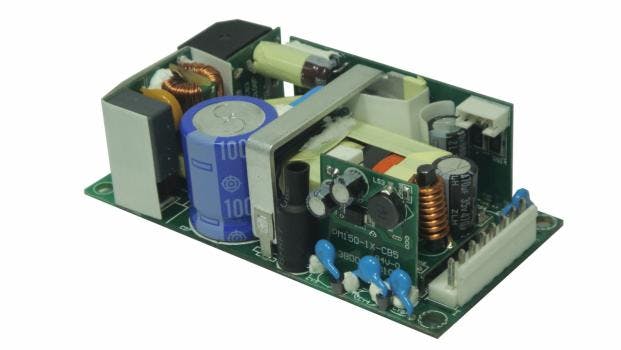

TMC150 series AC/DC Medical and ITE grade power supplies generate up to 150W at 7.5 CFM forced airflow and 100W at convection. Packaged in a compact 2 x 4 x 1.2-in. open-frame form factor, the series is an addition to the 40W, 60w, and 100W 2 x 4-in. open frame power supplies that the company has had on the market. It can be used in various end-user applications.
It can be fully loaded at 0OC to +70OC ambient, with no derating required until +50OC and is suited for operating at up to 5,000 meters altitude. The series offers high reliability with MTBF of 250,000 hours minimum at full load at 25OC ambient, calculated per MIL-HDBK-217F. The power supply has remote sense and optional PFD. No load power consumption is <0.5W without PFD and <1W with PFD. The units comply with EN61000-3-2 class A & D, EN61000-4-2, EN61000-4-3, EN61000-4-5, EN61000-4-11, in addition to EN55011, EN55022, FCC/VCC class B conducted and class A radiated EMC standards. It achieves an efficiency of 87-89% and is compliant with RoHS requirements.
- generate up to 150W @ 7.5 CFM forced airflow and 100W @ convection
- 2 x 4 x 1.2 in. open-frame form factor
- fully loaded at 0OC to +70OC ambient
