CONTA-CLIP SRK series combines all crucial innovations in the field of electric terminal blocks terminals and thereby satisfies even very demanding quality requirements regarding stability, safety and easy handling.
The series includes SRK feed-through terminals and SSL protective earth terminals in single and double level versions as well as SSIK fuse disconnect terminals. A very versatile range of accessories is available for all terminal types.
The SSIK fuse disconnect terminal with screw connection system features a hinged disconnect lever that locks in its end position and accommodates a spare fuse.
- Feed-through model range: 0.2 mm² to 120 mm²,
- Corresponding earth terminals: 0.2 to 70 mm²
- Terminal sizes for diameters up to 10 mm² are identical

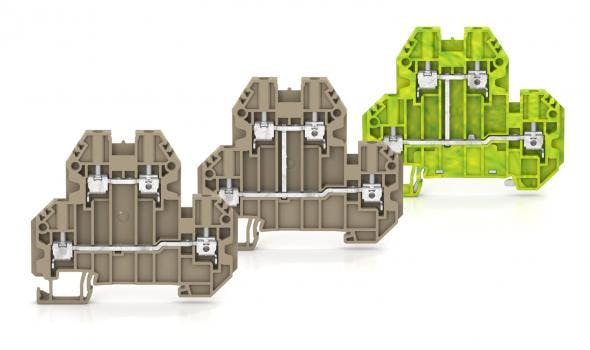

- SRKD and SSLD feed-through and protective earth terminals: for wire cross sections between 0.2 mm² and 10 mm² and with 2x2 or 1x4 connections
- Available as SSIK 4 models for microfuse types 5x20, 5x25, 5x30
- SSIK 6 models for fuse types 6.3 x 25 and 6.3 x 32 can be optionally equipped with an LED status display
