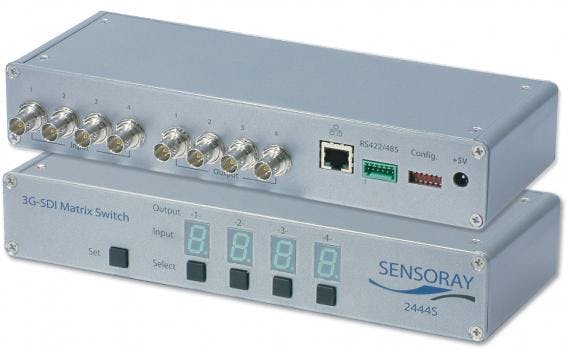

Model 2444 HD-SDI Video Switch can easily be used to select alternate video sources, and is ideal for video editing and broadcast applications.
The 4x4 matrix switcher's versatile switching fabric can also be used as a video splitter, routing one input to two or more outputs.
The unit can be controlled manually through its intuitive front panel console, or with a computer through its Ethernet or serial communications interfaces. A built-in web server allows the unit to be controlled from any web browser, and its integral telnet server enables it to be easily controlled by a remote, automated client over a network.
- simultaneously connect each of its four outputs to any of its four inputs
- built-in web server allows the unit to be controlled from any web browser
- supports all single-link SDI standards: SMPTE 259M(C) (SD-SDI), 292M (single-link HD-SDI), and 424M (3G-SDI)
