IQSmart AEC-Q100 Qualified IC Load Switches: GLF1111Q & GLF1200Q

Aug. 10, 2023
GLF Integrated's load switches support a wide input voltage range so a single device can be used in a variety of voltage rail applications.

Automotive grade AEC-Q100 IQSmart load switch ICs—GLF1111Q and GLF1200Q—are rated for a wide temperature range (Grade 1 -40 to 257°F (-40 to +125°C)).

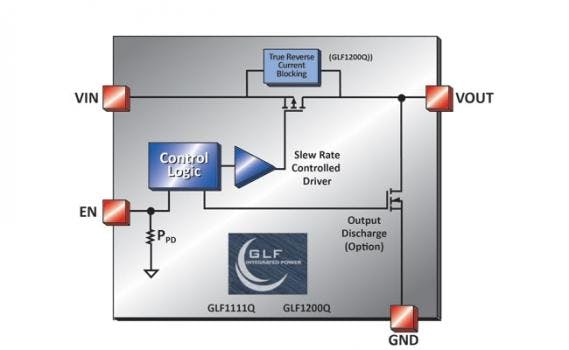

The GLF1111Q provides battery-saving leakage current (2nA, typ.). The GLF1200Q features true reverse-current blocking to prevent a backup power source from being discharged when an input node is shorted, working all of the time regardless of on or off state.



Both devices, packaged in a SOT-23-5L, offer easy visual inspection of solder joints and integrated slew-rate control that limit inrush upon turn-on, therefore minimizing the effects of voltage droop.



Each load switch IC supports a wide input voltage range (1.5 to 5.5V), meaning a single device can be used in a variety of voltage rail applications, which helps to simplify inventory management. And both are offered with an optional output discharge switch.

  • AEC-Q100 qualified
  • Qualified for Automotive Applications:
    • Temperature Grade 1: Ambient Operating
    • Temperature Range: -40 to 275°F (-40 to 125°C)
  • Wide Input Range: 1.5 to 5.5V
    • 6 VABS max
  • True Reverse Current Blocking (1200Q only)
  • RON: 60 m? Typ @ 5.5 VIN
  • IOUT Max: 2 A
  • Ultra-Low IQ: 2 nA Typ @ 5.5 VIN (1111Q only)
  • Ultra-Low IQ: 0.48 µA Typ @ 5.5 VIN (1200Q only)
  • Ultra-Low ISD: 13 nA Typ @ 5.5 VIN (1111Q only)
  • Ultra-Low ISD: 25 nA Typ @ 5.5 VIN (1200Q only)
  • Controlled Rise Time: 600 ?s at 3.3 VIN
  • Internal EN Pull-Down Resistor
  • Integrated Output Discharge Switch
  • ESD Performance Tested per AEC Q100 HBM: 4 kV, CDM: 2 kV
  • Moisture Sensitivity Level: MSL-3 and 500°F (260°C) Peak Reflow Temperature
  • Lead-free, Halogen-free, and adhere to RoHS Directive

Applications:

  • Infotainment and cluster display systems
  • Diagnostic systems
  • Passive entry/start systems (PEPS)
  • Customer premise equipment (CPE)
  • Face recognition systems
  • Intelligent cockpit and autonomous driving applications
