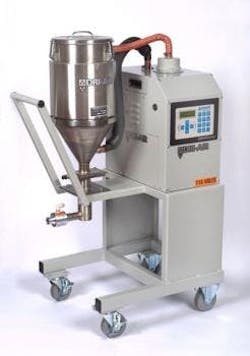

Portable Mini Desiccant/Compressed Dryers (Mini PD)

The Mini PD dryers are ideal for small press/extruders with the dryer and hopper on a compact, castered floor frame. Optional DAC compressed air loaders provide easy, safe changeovers eliminating press-mounted drying hoppers.



Desiccant Dryer:

• Space-saving, compact design, only 21 in. (54 cm) high and weighs only 70 lb. (32 kg)
• Fast drying with a small two-bed dryer
• Processing rates up to 10 lb/hr (5 kg/hr)
• ADC-based control with high-temperature alarm
• Dimensions 11 x 18 x 21 in. (28 x 46 x 54 cm)

Compressed Air Dryer:

• Space-saving, compact design, only 25 L x 18 in. D (64 x 46 cm)
• Fast drying with Dri-Pak membrane to assure -49°F dewpoint air
• Processing rates up to 10 lb/hr (5 kg/hr).
• ADC-based control with high-temperature alarm.

Dri-Air ModelProcess RateHopper CapacityDimensions (LxWxH)MPD-5D2 lb/hr (1 kg/hr)5 lb. (2 kg)25 x 18 x 26 in. (64 x 46 x 66 cm)MPD-15D5 lb/hr (2 kg/hr)15 lb. (7 kg)25 x 18 x 33 in. (64 x 46 x 86 cm)MPD-30D10 lb/hr (5 kg/hr)30 lb. (14 kg)25 x 18 x 38 in. (64 x 46 x 96 cm)
