NIV PEEK & PTFE Media Isolation Valves

Oct. 10, 2018
Clippard's isolation valves offer longer life and zero dead volume.

Update 7/2022: Clippards Media Isolation Valves now offer PEEK in addition to PTFE.

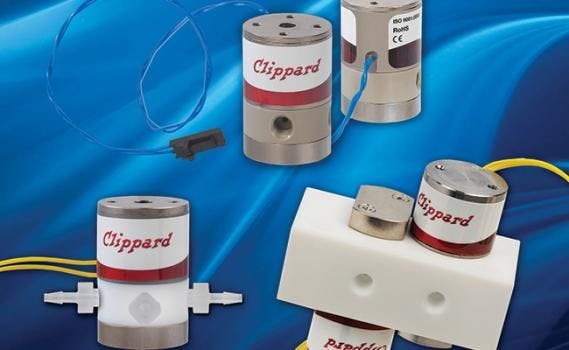

NIV PEEK & PTFE Media Isolation Valves are solenoid-operated devices that use a flexible diaphragm to isolate the actuation mechanism from the fluid path. The valves are commonly used for a wide variety of applications, including those that require precise, repeatable dispensing of media.



All wetted areas of the valve are PTFE, making this series ideal for use with corrosive media. A unique feature is the one-piece valve stem that functions as a sealing membrane while also supporting and centralizing the poppet in the seating area. This multi-functional poppet/diaphragm/stem results in a simplified design with fewer parts, longer life, and zero dead volume.



These valves are highly modifiable with various mounting, porting, material, flow, and voltage options. Industries and applications that commonly use these types of valves to isolate gas or liquid include drug dispensing, laboratory equipment, analytical, chemical analysis, sampling, life science/biotech, genetic research, gas chromatography, spectrometry, DNA synthesizing, blood analyzing, printing, diagnostic equipment, fermentation, water treatment and more.

  • Low power consumption
  • Compact, lightweight design
  • Bidirectional
  • Zero dead volume
  • All wetted areas are PEEK or PTFE
  • Ideal for use with corrosive media
  • High cycle life
  • Fast response time
  • CE, RoHS compliant
  • ISO 9001:2008
  • Valve Type: 2-Way N.C, 2-Way N.O., 3-Way Selector/Diverter
  • Medium: Air, water, gas or compatible fluids
  • Operating Temperature Range: 0 to 158°F (70°C)
  • Pressure Range: Vacuum to 30 psig (2 bar)
  • Flow Rate: 6 to 60 l/min Air @ 30 psig
  • Max. Pressure Range: 28" Hg to 30 psig
  • Wattage: 1.0 to 7.2 W
  • Response Time: 5 to 20 ms
  • Connection: 18 in. (4 cm) wire leads
  • Voltage: 12 or 24V DC
  • Ports: #10-32, 1/4-28 UNF, 1/8 NSP or G1/8
  • Mount: #2-56, #4-40 or Manifold
  • Wetted Materials: PTFE or PEEK (PPS available)
