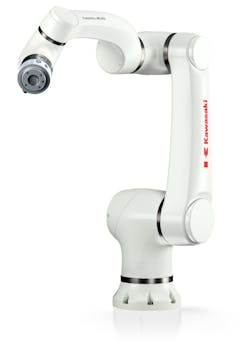

CL Series of Cobots Offer Cobot Safety With Industrial Robot Speed
Powered with partner NEURA Robotics’ robotic assistant platform, the CL Series of cobots combines the safety of standard cobots with the speed and productivity of industrial robots.
They offer a speed of 200-deg./s and repeatability of ± 0.02 mm (0.0008 in.) with payloads and reaches of 7 lb./20 in., 11 lb./30 in., 18 lb./50 in., and 22 lb./40 in. (3 kg/590 mm, 5 kg/800 mm, 8 kg/1,300 mm, and 10 kg/1,000 mm) free mounting orientations, extremely small footprints, and IP66 classification.
Designed and built in Germany, the series offers integrated 24-bit encoders and an extremely light-weight, reliable construction.
Its proprietary safety architecture and features for safety positions, speed, torque, zones, limits, and collision detection allow the cobots to operate alongside humans.
The CL Series can safely handle even the most challenging workpieces and assemble objects with consistent force, eliminating waste and preventing costly collisions. These robots cover common interfaces such as Digital I/O, safety I/O, and Ethernet/IP. The TCP connector flange offers digital I/O ports (in/out), analog in ports, and a 24V 600 mA power supply.
| CL103N | CL105N | CL108N | CL110N | |
| Payload | 7 lb. (3 kg) | 11 lb. (5 kg) | 18 lb. (8 kg) | 22 lb. (10 kg) |
| Max. Reach | 20 in. (590 mm) | 30 in. (800 mm) | 50 in. (1,300 mm) | 40 in. (1,000 mm) |
| Mounting | Floor, Shelf | |||
Kawasaki Robotics USA, Inc.
Wixom, Michigan
(248) 446-4100 (Local)
(855) 855-1414
kawasakirobotics.com
