Modular Vision Series of Scalable HMIs

Modular Vision series of HMIs come in various sizes and provide a new platform concept with scalable HMIs based on SECO's core technologies—Arm and x86.

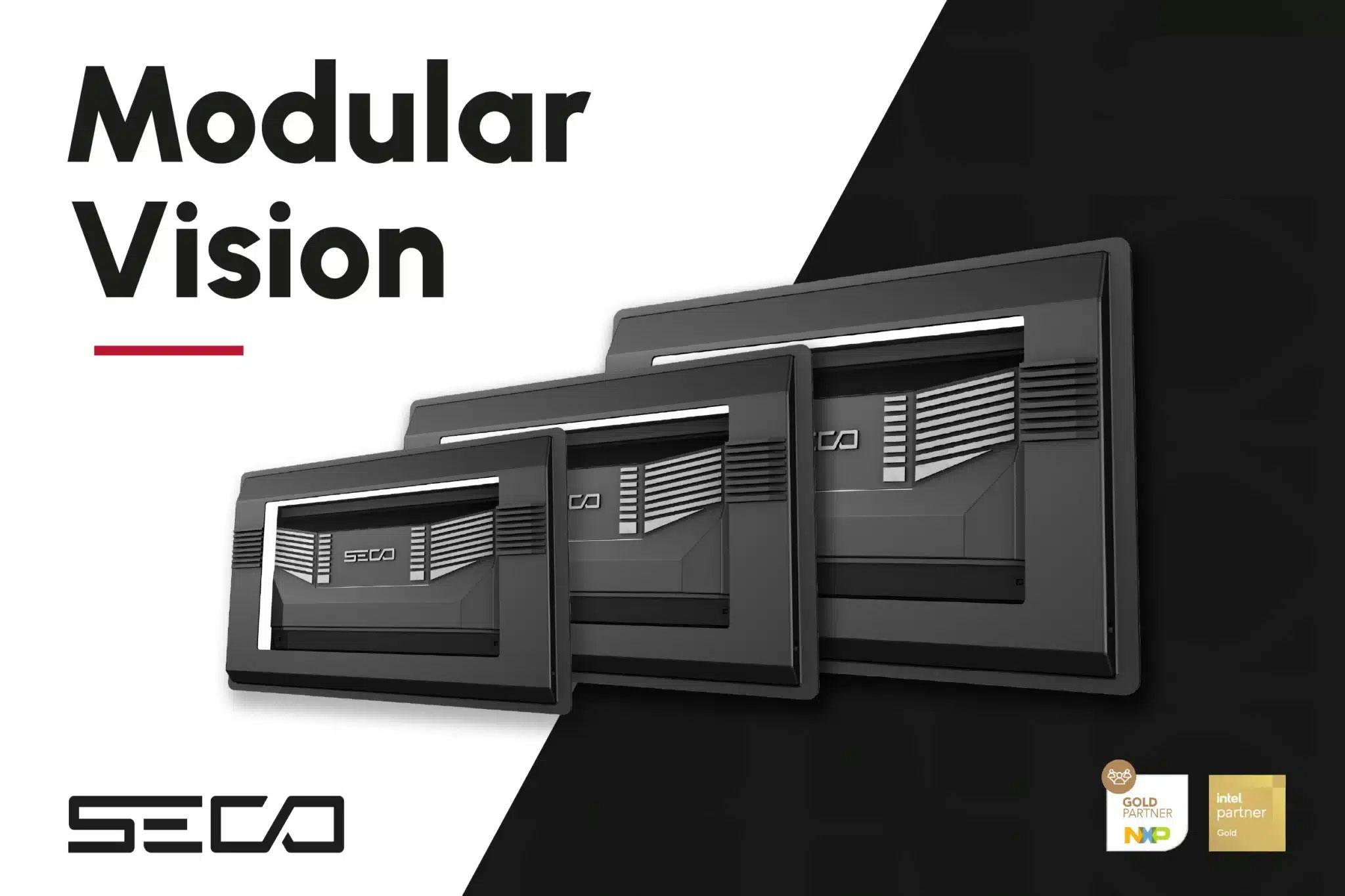

The scalable series consists of 3 members in sizes of 7, 10, and 15 in., with resolutions ranging from 1024 x 600 to Full HD (1920 x 1080) and a brightness of >400 cd/m2. Additional screen sizes and resolutions will follow.

Scalability in this context not only refers to display size and resolution but also to the performance capabilities of the integrated electronics. These HMIs are available as standalone panel PCs or as OEM products that can be integrated into the respective application using various adapters.

The entry-level Modular Vision 7 MX93 models with a 7-in. display feature the NXP i.MX93 application processor as their core component and are equipped with up to 2GB LPDDR4-3200. Interfaces like Gb Ethernet, RS485, CAN, RS232, USB, and Digital I/O are available.

The central component of the 10-in. high-end HMIs, the Modular Vision 10.1 MX8M-Plus, is the NXP i.MX8M Plus application processor. These devices come equipped with up to 6GB LPDDR4-4000 and feature the same interfaces as the 7-in. models. Additionally, the HMIs include a highly performing internal GPU, the GC7000UL, capable of supporting up to 3 displays.

The Modular Vision 15.6 EHL models with a 15.6-in. display were also designed for high-end applications and are based on Intel Atom x6000E Series, Intel Pentium, Celeron N, and J Series processors. They feature Quad Channel LPDDR4 memory and an integrated Gen11 UHD graphics controller for three independent displays.

All 3 HMI models are designed to operate in ambient temperatures ranging from 0 to 60°C.
