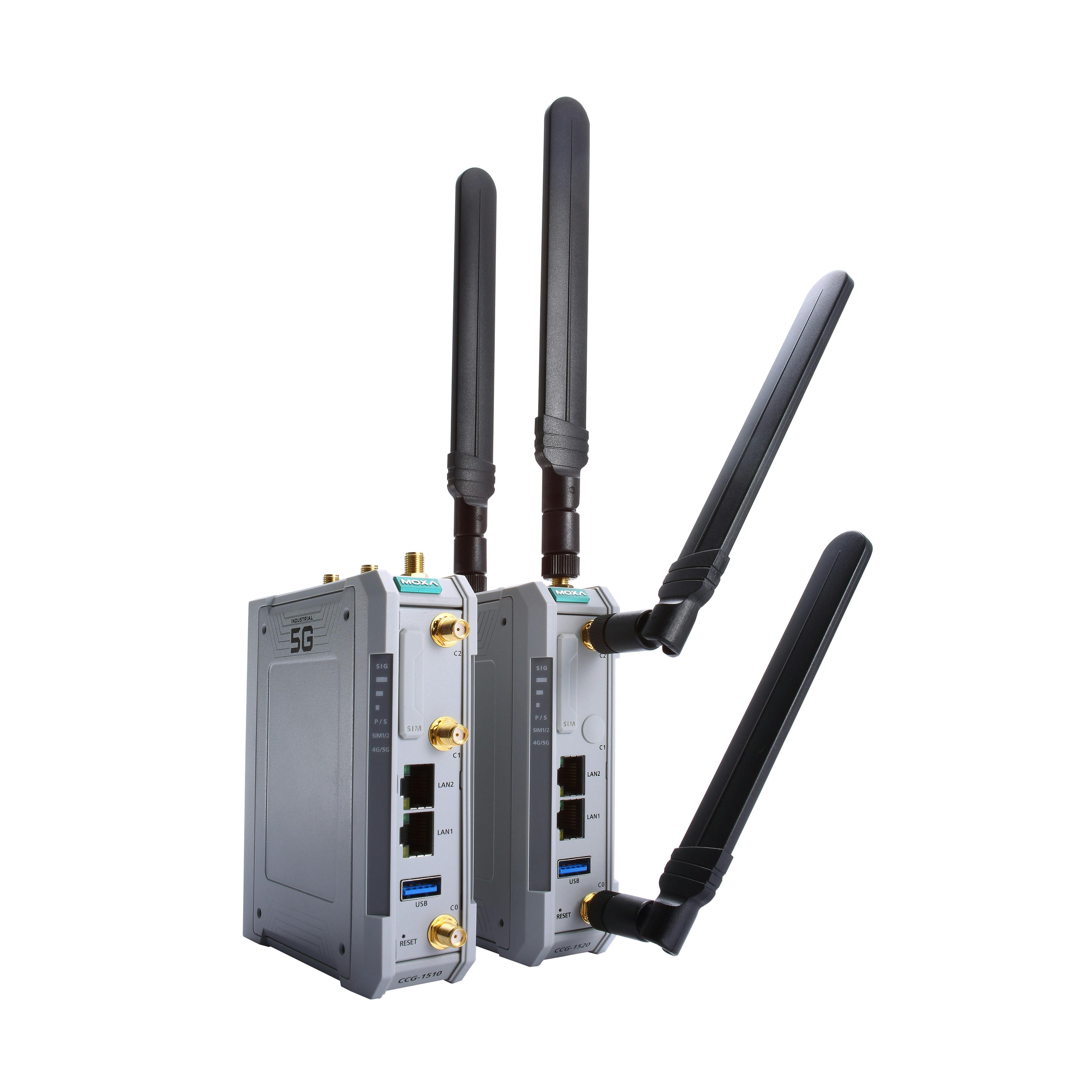

The CCG-1500 Series of industrial 5G cellular gateways help customers embrace the benefits of private 5G in industrial applications. The gateways provide 3GPP 5G connectivity for both Ethernet and serial devices to simplify industrial private 5G deployments, such as AMR/AGV applications.
Acting as an ARM-based media and protocol converter with a built-in 5G/LTE module, they leverage the Snapdragon X55 5G Modem-RF System and incorporate a broad range of technologies and protocols to enable interoperability and compatibility with major 5G RANs (Radio Access Networks) and 5G core networks from providers such as Ericsson, NEC, and Nokia.
They deliver 5G speeds up to 920 Mbps and serial/Ethernet-to-5G conversion for private networks to help transform and expand operations by bridging OT networks and 5G systems. Fitted with 2 Gigabit ports and 1 serial port, the gateways ensure reliable connectivity while dual-SIM support provides carrier failover for mission-critical reliability.
- Supports global private 5G bands
- Supports serial/Ethernet-to-5G connectivity to speed up private 5G network deployments
- Cellular redundancy with dual-SIM support
- 8-watt low power consumption under normal operating conditions
- Compact size and smart LED design for easier installation and troubleshooting
- -40 to 158°F (-40 to 70°C) wide operating temperature with 5G enabled
- Qualcomm Snapdragon X55
- 5G-ready media converter with industrial-grade FCC/UL/NCC/JET/Telec certifications
- 2 auto-sensing 10/100/1000 Mbps Ethernet ports
- 1 RS-232/422/485 serial port
| Console Port | 1 x 4-pin header to DB9 console port |
| Data Bits | 5, 6, 7, 8 |
| Parity | None, Even, Odd, Space, Mark |
| Stop Bits | 1, 1.5, 2 |
| Baudrate | 9,600 to 115,200 |
| Cellular Standards | 5G R15 |
| Input Voltage | 9 to 24V DC |
| Power Consumption | Average: 8 W Peak: 11 W |
| Input Current | 9 to 24V DC @ 1.33 to 0.5 A min. |
| Power Connector | Terminal Block |
| Dimensions | 4 x 5 x 1 in. (100 x 125 x 35 mm) |
| Housing | Metal/SECC |
| Installation | DIN-Rail/Wall Mounting |
| IP Rating | IP30 |
Moxa
