SENTRY io Fire and Gas Controller

Dec. 12, 2023
MSA Safety's SENTRY io supports up to 16 flame detection channels and lets you monitor each point detection, real-time data, and alerts at a glance.

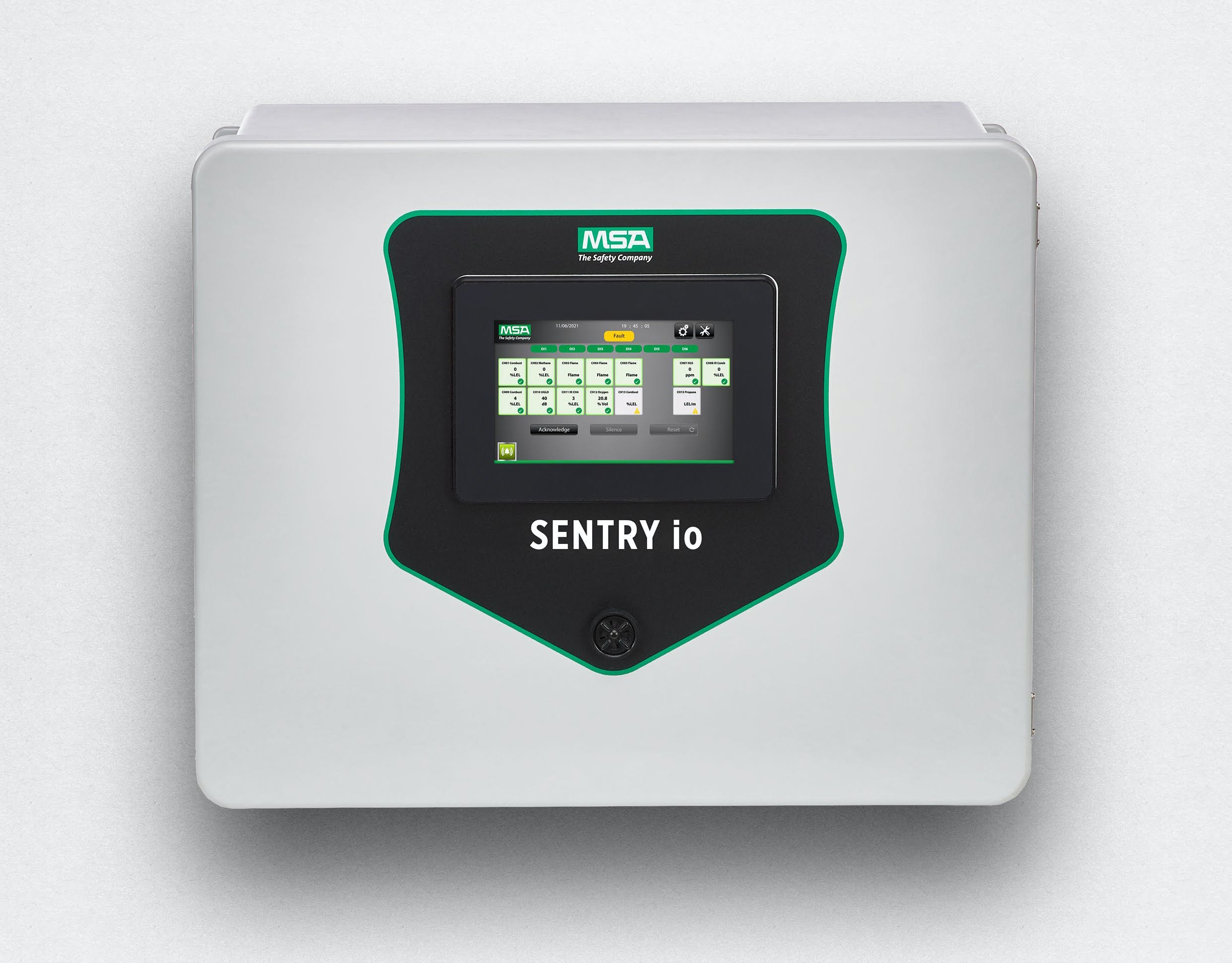

The SENTRY io fire and gas controller is an easily configurable, wall-mounted controller that supports up to 16 gas and flame detection channels.

It delivers a streamlined experience, providing total control with its interface and easy-to-read dashboard. At a glance, you can monitor the status of each point of detection, access real-time data, and receive instant alerts.

Modern touchscreen HMI supports easy setup, operation, and troubleshooting workflows. Guided setup and auto-recognition of MSA and General Monitors flame and gas detectors through HART saves time during setup and configuration.

Features:

  • Available as a wall mount unit in several configurations of either 8 or 16 points
  • Modbus TCP/IP, EtherNet/IP, optional Modbus RTU
  • Logic control features such as cause & effect and voting schemes
  • SmartStart guided setup walks users through the setup process during commissioning
  • EZ-ID auto-recognition for a robust library of HART-enabled MSA and General Monitors detectors for easy setup
  • Multi-lingual HMI touchscreen provides intuitive navigation through workflows
  • Equipped with Device Level Ring (DLR) networking options that deliver financial and schedule savings in projects
  • Saves wiring expenses and complexity with a loop topology to connect multiple controllers in a single run
  • Ability to network Sentry io together with other units

Digital Communications Modbus TCP/IP, Modbus RTU, EtherNet/IP, DLR
Classification Class I, Div 2
Housing Fiberglass, NEMA 4X, IP65
Input Power 85-264 VAC, 50-60 Hz (auto-switching input)
Input Types 4-20mA, discrete inputs
Dimensions (L x W x H) 22 x 18 x 9.5 (559 x 448 x 241 mm)
Weight 44 lb. (20 kg)
Temperature Range -4 to 149°F (-20 to 65°C)

MSA Safety
