    All-in-One Palletizing Solution for Payloads Up to 44 Pounds

    May 9, 2024
    Using the heavyweight CS620 robotic arm which features a 20 kg payload and an 1,800 mm radius, Elite Robots' all-in-one palletizing solution integrates a lifting column to increase the robot's reach and a custom-crafted end-of-arm tool.
    Related To: Elite Robots
    © Elite Robots
    663d2331815ba1d1cf0df1f3 Cf3a96171 Resized1

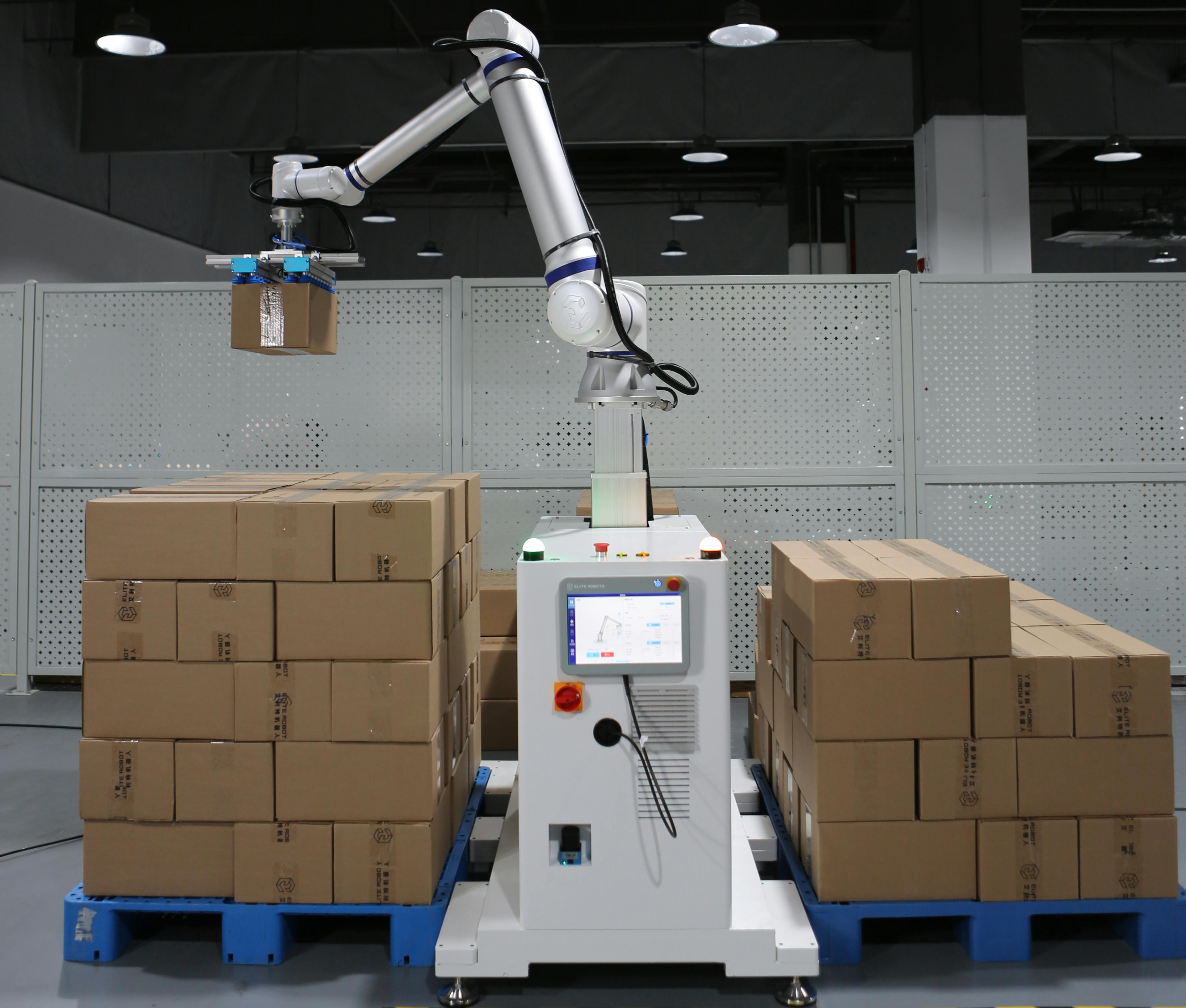

    Using the heavyweight CS620 robotic arm which features a 44 lb. (20 kg) payload and a 6 ft (1,800 mm) radius, Elite Robots' all-in-one palletizing solution integrates a lifting column to increase the robot's reach and a custom-crafted end-of-arm tool.

    The pallet position sensors inform the robot when an empty pallet is ready for action, while the proximity sensors and the dynamic safety plans ensure enhanced safety.

    From the software side, the embedded palletizing wizard ensures rapid setup, ease of operations, and real-time monitoring of the production status.

    CS620 Cobot
    Payload 44 lb. (20 kg)
    Radius 6 ft (1,800 mm)
    Accuracy ± 0.004 in. (0.1 mm)
    Max TCP Speed 13 ft/s (3.9 m/s)
    IP Rating IP65 (optional IP68)
    Temp. Range 14 to 122°F (-10 to 50°C)
    Typical power usage 625 W
    Tool I/O Connector T1: M8, 8 pin
    T2: 0.5 in. dia. (13 mm), 4 pin
    Tool I/O Ports 4 config. DI/4 config. DO; 1 AI, 1 AO
    Tool I/O Power Supply T1: 0, 12V, 24V, 3 A, 2 A, 1 A
    T2: 24V, 5 A
    Tool I/O Communication RS485, Modbus RTU
    Footprint Ø 240 mm
    Weight 60 kg

    Elite Robots
    Knoxville, TN
    (865) 392-1215
    www.eliterobots.com
