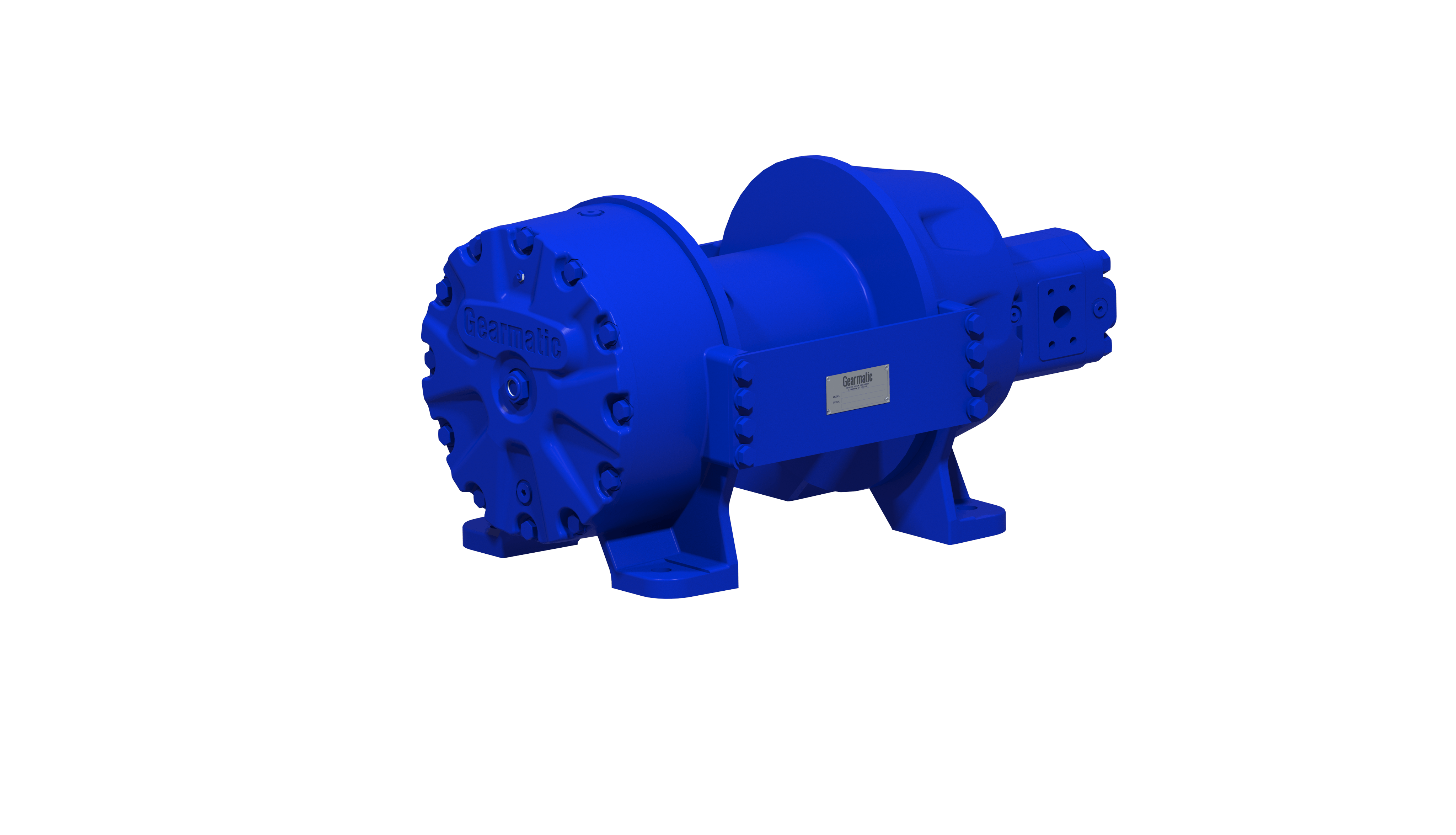

Gearmatic GM12A Hydraulic Planetary Hoist for Demanding Drilling Applications

The GM12A hydraulic planetary hoist for marine and drilling applications has a rated line pull of 12,000 lb. (5,443 kg) and can be installed using an industry-standard mounting pattern in either an overwound (counterclockwise) or underwound (clockwise) configuration for versatility.

Equal-speed and high-speed reverse models are available to suit multiple applications in the fishing, dredging, and drilling markets. Crowned planetary gears ensure efficient performance over a longer service life while reducing noise.

Sintered bronze brake discs create smooth operation, even after extended storage periods. Additionally, the brake disc material allows for heat dissipation and high-speed reverse performance.

The GM12A has a standard sight glass to easily check the oil level and an indexable breather vent to provide 360 degree mounting options. Stainless steel drum seal lands provide corrosion resistance.

The hoist is available with two drum sizes (-01 and -05) which can accommodate up to 225 ft (68.6 m) and 352 ft (107.3 m) of 5/8 in. (16 mm) rope, respectively.

Overall, the hoist is engineered for fast, simple maintenance and repair, with longer oil life and faster service time without special tools.

Features:

• Overwound (CCW) and underwound (CW) drum configurations
• Equal speed and high-speed reverse configurations
• Sintered bronze brake discs for smooth operation and better heat dissipation even after long-term storage
• Crowned planetary gears provide longer life and reduced noise
• Stainless steel drum seal lands for superior corrosion resistance
• Sight glass to easily check oil level
• Indexable breather vent for 360° mounting options
• Engineered for fast, simple maintenance and repair
• Installs using standard mounting pattern
