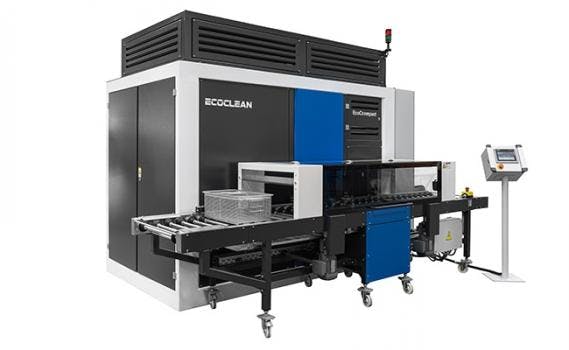

With features such as a large batch capacity, improved washing mechanics, and wash fluid reconditioning, as well as energy-optimized system technology with effective heat recovery, the EcoCcompact cleaning system machines keep unit cleaning costs low even when cleanliness requirements are high. The small footprint and flexible changeover between hydrocarbons and modified alcohols also contribute to the excellent economic efficiency and future-proof concept of the compact plug & play cleaning system.
Requiring a space of just 126 x 63 x 96.5 in. (3,200 x 1,600 x 2,450 mm), the machine comes with two or three fully-integrated flood tanks, each fitted with a filtration system in the supply and return lines in the form of bag-type or high-performance filters and bypass filtration. The working chamber’s standard diameter of 21.7 in. (550 mm) results in a batch capacity which is higher than that of conventional systems in this segment. The high flooding volume means that parts are fully immersed in the wash fluid during the process.
The EcoCcompact’s energy-optimized system technology makes the machine even more economically efficient. The machine also has impressively low solvent requirements by installing the distillation unit in a vertical position, which requires hardly any mounting fixtures. The design reduces sump formation, prevents dirt build-up, and results in an extended bath life.
An HMI touch panel and pictograms guarantees simple, safe, and fast operation. Integrated parts visualization also makes process tracking and maintenance easier and more intuitive.
- Flexible application option: for various applications from preliminary and intermdediate to final cleaning as well as preservation
- Forward looking technology: suitable for operation with non-halogenated hydrocarbons and modified alcohols for changing production conditions
- Reduced per-unit product costs: through volumetrically optimized batch make-up at high throughput rates
- Enhanced parts cleanliness: improved fluid management and frequency-controlled flooding process
- User-friendly operation: HMI operator panel for realtime monitoring of all system states, fault diagnostics, and service intervals notification, supports industry 4.0
- Ease of maintenance: smart compact construction facilitates accessibility while having a small footprint
- Customer-specific features: large variety of configuration optionsin the basic version
