ORP215M-R Precision Orifice Plate Wellhead

Sept. 29, 2021

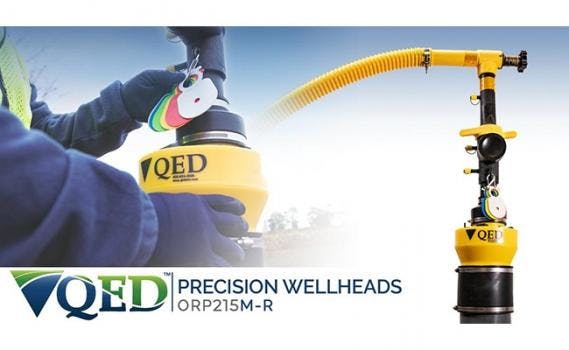

Q.E.D. Environmental Systems' ORP215M-R Precision Orifice Plate Wellhead features heavy-duty engineered plastic construction.

The ORP215M-R Precision Orifice Plate Wellhead combines easy plate exchanges for more accurate flow measurement with precise adjustment of gas flow, especially at very low rates. A new design includes a complete kit of six orifice plates securely attached to the wellhead for quick access. A permanent stainless-steel S-type orifice plate retainer keeps the plates close at hand and helps prevent loss of the orifice plates. With plates readily at hand, it is easier to keep gas fields properly tuned for the best performance.



Changing to the correct orifice plate takes only seconds, with no time wasted shutting down the control valve or retuning the well. The precision fine tune control valve provides exact gas flow control. Unlike traditional valves, this unique design achieves near linear flow adjustment across its entire range. The serviceable control valve includes a stainless-steel rod for long service life.



The QED ORP215M-R wellhead features heavy-duty engineered plastic construction. Molded, glass-filled polypropylene boosts strength and resistance to UV, weather, and harsh field conditions, significantly increasing wellhead durability. A tapered connection makes hose fitting easy, while simpler service saves valuable field time and helps reduce maintenance and labor costs.



The upgraded ORP215M-R wellhead allows operators to have the exact orifice plate for efficient tuning right at hand.

  • Quick-change orifice plates
  • Permanent orifice plate retainer
  • Construction is resistant to UV and weather
  • Serviceable control valve with stainless steel rod
  • Easy port fittings wellhead fittings
  • Tapered connection for easy to attach hose
