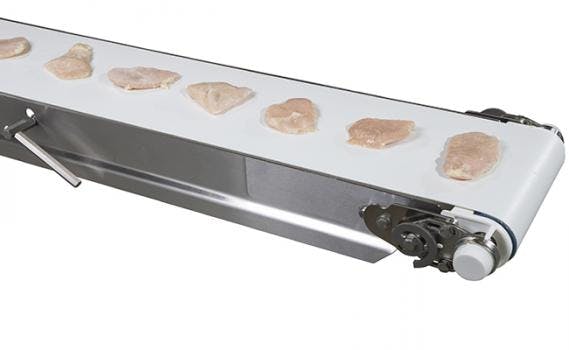

The hygienically engineered stainless steel AquaPruf Conveyor incorporates several design features to give users a platform that meets the latest sanitary standards and requirements of the food industry today.
The conveyors replace a conventional gearmotor with a iDrive2 motorized roller option. The iDrive2 is a gearless, oil-free technology roller that provides a food-safe compact footprint for the conveyor. Conveyors with conventional stainless steel gearmotors are located outside the food zone for added food safety.
Curve conveyors provide a tight turning radius with improved chain strength, allowing three curves to be powered by only one gearmotor. A spiral-cam threadless belt tensioning and tracking system enhances conveyor control and streamlines operation while minimizing downtime. Additionally, a tail-height adjustment mechanism provides easy access to modify operation and aid in product transfers.
The quick-removal side mount gearmotor package allows the side mounted gearmotor to be removed in less than a minute for cleaning inside the conveyor. All AquaPruf conveyors feature toolless disassembly.
Other features include optional frame cut-outs and belt lifters for continuous access inside the conveyor, tip-up tails for quick release of belt tension, a continuous TIG-welded 304 stainless steel frame, and a patented sprocket alignment key.
- Widths: 6 to 60 in. (152 to 1,524 mm)
- Lengths: 36 to 999 in. (914 to 25,375 mm)
- Load capacity: Up to 20 lb. per square inch (98 kg per square meter)
- Speeds: Up to 328 ft/min. (100 m/min.)
