Ensenso S10 Entry-Level 3D Camera

Sept. 29, 2021

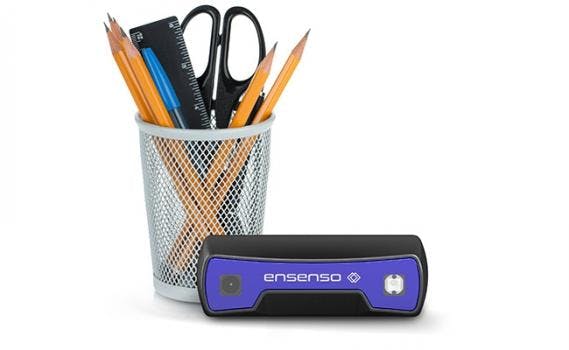

The Ensenso S10 Entry-Level 3D Camera from IDS Imaging Development Systems generates 3D data using laser point triangulation.

The Ensenso S10 Entry-Level 3D Camera has an ultra-compact, IP65/67-protected housing and generates 3D data using laser point triangulation, supported by artificial intelligence. This makes the camera suitable for a wide range of applications. It delivers robust 3D information even in low ambient light.



The camera is equipped with a 1.6 MP Sony sensor and operates on a laser-based 3D process. A narrow-band infrared laser projector creates a high-contrast dot pattern – even on objects with difficult surfaces or in low-light environments. The camera's laser point triangulation is accelerated by a neural network and enables reliable mapping of the captured pattern points to the hard-coded positions of the projection. This results in robust and geometrically precise 3D data with high depth accuracy.



With a rugged zinc die-cast housing, a 60° field of view, and a working range of 1.6 to 9.8 ft (0.5 to 3 m), the 3D camera can be used universally and is suitable for industrial applications with high-cost efficiency.

  • IR laser
  • AI powered
  • Depth accuracy
  • Compact dimensions
  • Industrial grade
