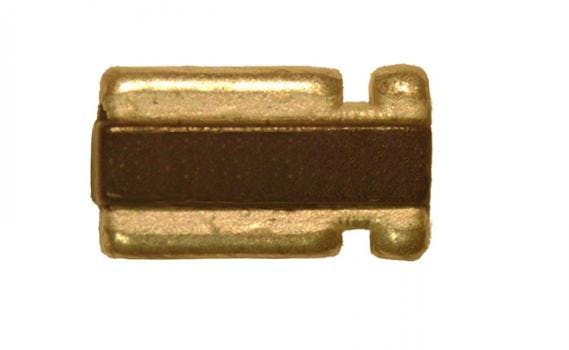

CSSK3637 Chip Resistor

Sept. 9, 2021
Stackpole Electronics' CSSK3637 Chip Resistor offers ideal high current performance, stability, and accuracy.

The CSSK is a four-terminal chip resistor series that provides high power handling, low resistance values, and low TCR with the added accuracy of a four-terminal Kelvin connection. The recently added CSSK3637 is available in resistance values from 0.5 to 3 milliohm, with 50 ppm TCR, and tolerances as low as 0.1%.



The high current performance, stability, and accuracy make the CSSK ideal for applications such as power modules, frequency converters, home appliances, solid-state power supplies, portable battery management, hybrid power control, and automotive power and control.

  • Metal element current sensing resistor
  • Power rating to 3 W
  • Operation temperature range is -67 to +338ºF (-55 to 170ºC)
  • Tolerance available in ± 0.5% to ± 5%
  • Insulation resistance over 100M ?
  • The maximum working voltage (V) is (P*R)^1/2
  • 100% RoHS compliant and lead-free without exemption
  • Halogen-free
  • REACH compliant
