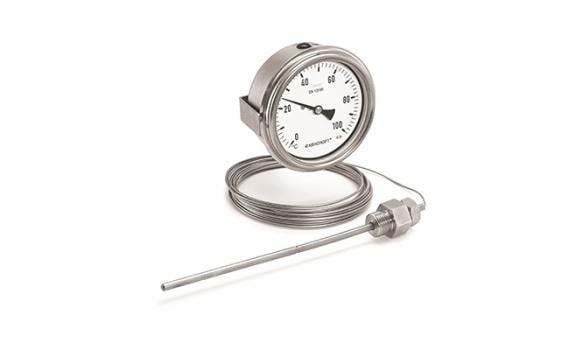

The dry or liquid filled S5500 Gas Actuated Dial Thermometer is a rugged, all stainless steel instrument that can be used in nearly any environment. Offering 3.9 in. (100 mm) and 6.3 in. (160 mm) dial sizes, this model measures extreme temperatures from -328°F to 1472°F (-200°C to 800°C) with a span accuracy of ±1% or ±0.5%.
Available with both direct and remote sensing configurations, the dial thermometer can provide temperature readings on the spot or up to 328.1 ft (100 m) away. This highly customizable thermometer provides IEC IP65 ingress protection and meets the requirements of EN 13190.
Specifications
- Accuracy:
- ±1.00% of span
- ±0.05% of span (OPT.)
- Size:
- 3.9 in. (100 mm)
- 6.3 in. (160 mm)
- Case Material: Stainless Steel
- Case/Ring Style: Bayonet Ring
- Bulb/Stem Length: 2.0 in. to 39.4 in. (50 mm to 1,000 mm)
- Armor: Stainless Steel
- Mounting & Connection:
- Stem
- Surface
- Flush
- Window:
- Glass
- Safety Glass
- Acrylic
Key Features
- All-stainless steel construction
- Direct or remote mount versions
- Wide selection of temperature ranges
- Dry or liquid filled
- IP65 protection
- EN 13190
Applications
- Process Market
- Chemical and petrochemical plants
- Pulp and paper
- Water and wastewater
- Machine and apparatus construction
- Medical and Life Sciences
- Pharmaceutical / Biotech
- Food and Beverage
