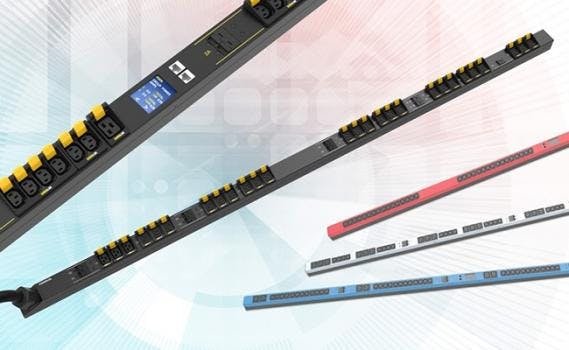

The 8200-8300 Series are 120/208V rack Power Distribution Units (rPDUs) that offer enterprise, cloud, colocation, and edge data center operators a highly reliable PDU solution with proprietary CORDLOK technology; power and environmental monitoring; several options; and short lead times.
Rounding out the 8000 Series, the 208V single-phase and 120/208V three-phase WYE models offer a 2.18 W x 2.9 in. D slim design that is purpose-built for easier access to equipment in power-dense rack environments. In addition, these receptacle dense 20 to 30-amp rPDUs feature sophisticated monitoring via SNMP and Ethernet with an easy-to-view touch screen that displays alarms, amps, kilowatts, volts, and the internal temperature of the PDU. In addition, the power dashboard provides visual historical graphing of power monitoring.
A standard feature of the Series is Gateview’s patented CORDLOK technology. This innovative receptacle enhancement secures typical pronged plugs with a two-position gripping latch that eliminates accidental unplugging of power cords. Additionally, CORDLOK offers easy, single-hand insertion and removal of cords with a positive click when fully inserted. For circumstances where it might not be appropriate—such as extreme space constraints—any model can be specified without CORDLOK capability as a special order. Models without CORDLOK are only 2.0 in. deep.
For easier visual identification of the PDUs in dense racks, the 8200-8300 Series can be ordered in carbon (standard for quick delivery) or red, white or blue colors at no additional cost with 6 and 10-ft angled whips. Unlike other rPDUs on the market, the connections are soldered from the line cord to every receptacle, removing all mechanical terminations.
