The 6-axis IRB 1300 industrial robot includes new protection elements that enable it to be used in tough industrial applications and contamination-free production processes, opening new opportunities for increased productivity, improved product quality, and reduced cycle times in a variety of industries including electronics assembly, automotive and metals fabrication, amongst others.
The IRB 1300 is now available in IP67, Foundry Plus 2, and cleanroom ISO 4 versions. This will expand its use in tough environments, with high levels of liquids and dust by preventing intrusion through sealing all electrical components.

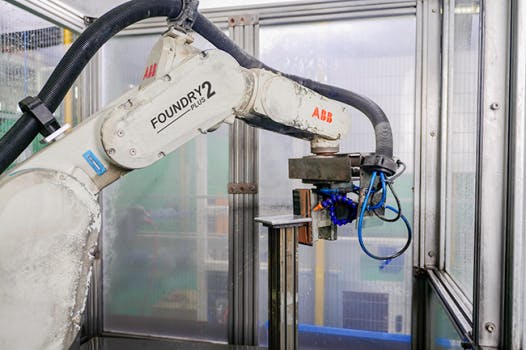

For added protection in metals applications including metal die casting, sand casting, forging, and machining, the Foundry Plus 2 version includes the use of stainless steel on the end effector. This will prevent rusting that can occur when liquids are applied to wash away dust particles and metallic debris.
For applications requiring a clean production environment, in industries such as pharmaceuticals and semiconductor manufacturing, the IRB 1300 ISO 4 cleanroom version features a number of measures to help eliminate the risk of contamination. Key features include the use of chemical-resistant exterior paint which helps avoid paint degradation when using cleaning agents that protect against bacteria. The robot’s design also minimizes the number of gaps where bacteria could form, providing an added level of protection, while a particle filter and a fully sealed design prevent grease, oil, and particles from coming into contact with the products being handled.
Featuring a footprint of just 220 x 220 mm, the IRB 1300 is ideal for use in confined spaces, enabling more robots to be deployed in a specific area if required. It is available in three main versions:
- 7 kg/1400 mm
- 10 kg/1150 mm
- 11 kg/900 mm
Powered by ABB’s OmniCore controller, the IRB 1300 offers advanced motion control and best-in-class path accuracy, allowing it to handle an expanded range of applications such as polishing and machine tending. To maximize the versatility, the OmniCore controller can be fitted with a range of additional equipment, including fieldbus protocols, vision solutions, and force control. OmniCore also offers a simple user interface on the FlexPendant, which features a large multi-touch display with standard gestures such as pinch, swipe, and tap, allowing users to easily program and operate their robot.
Robot version
Reach (mm)
Payload (kg)
Armload (kg)
