E2F, E2S, and E2X Pressure Transducers

Aug. 26, 2021
The Ashcroft E2G industrial pressure transducer is now available in three additional variations for use in hazardous locations.

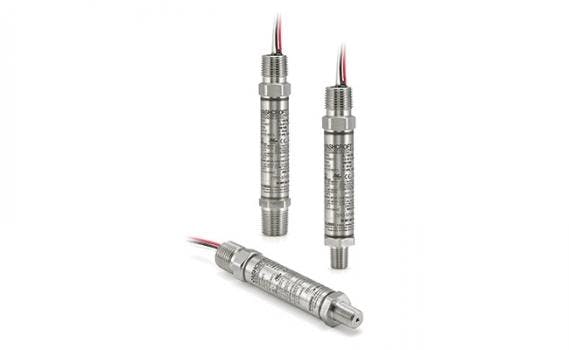

The Ashcroft E2G industrial pressure transducer is now available in three additional variations for use in hazardous locations. Models E2F (explosion proof), the E2S (intrinsically safe), and the E2X (explosion proof /intrinsically safe) carry FM, ATEX, and IECEx approvals as well as an IP66 or 67, NEMA 4X rated enclosure to protect against water and humidity.



Each is equipped with accurate and reliable sensing technology, yielding pressure ranges from vacuum to 20,000 psi and absolute ranges up to 500 psia. For added safety, offset and span adjustments are incorporated within the housing and can be externally adjusted with a magnet.

  • Reference Temperature
    • 21°C ±2°C (70°F ±3°F)
  • Accuracy
    • ±0.25%, ±0.5%, ±1.0% of span Terminal Point Method includes: hysteresis, non-repeatability, zero offset and span setting errors
  • Stability
    • ?±0.25% span/year at reference conditions
  • Durability
    • >10 million cycles
  • Pressure Ranges
    • Vacuum to 20,000 psig, 0 to 500 psi absolute
  • Ingress Rating
    • IP66
    • IP67
    • IP69K (consult factory)
  • Outputs
    • 0-10 Vdc (3 Wire)
    • 0-5 Vdc (3 Wire)
    • 0.1-10 Vdc (3 Wire)
    • 0.1-5 Vdc (3 Wire)
    • 0.5-4.5 Vdc (3 Wire)
    • 1-11 Vdc (3 Wire)
    • 1-5 Vdc (3 Wire)
    • 1-6 Vdc (3 Wire)
    • 20-4 mA (2 Wire)
    • 4-20 mA (2 Wire)
  • Wetted Material
    • Diaphragm: 17-4PH Stainless steel, 316L Stainless steel, 316L Stainless steel liquid isolated, A286
    • Process Connection: 316L Stainless Steel
  • Non-Wetted Materials
    • Housing: 316L Stainless steel
  • Accuracy
    • ±0.25%, ±0.5%, ±1.0% of span Terminal Point Method includes: hysteresis, non-repeatability, zero offset and span setting errors
  • Process Connection
    • 1/4 NPT Male
    • 1/8 NPT Male
    • ½ NPT Female
    • ½ NPT Male
    • ½-14 NPT Female
    • ¼ NPT Female
    • ¼? VCR gland with 9?16-18 Female Swivel Nut
    • ¼? VCR gland with 9?16-18 Male Swivel Nut
    • ¼-18 NPT Female
    • 1?8 -27 NPT Female
    • 7?16-20 UNF-2B SAE J1926
    • 7?16-20 UNJF-2A SAE Male (SAE J1926 O-Ring Boss seal)
    • 7?16-20 UNJF-3A 37° Flare (SAE AS4395)
    • 9?16-18 UNF-2B Female
    • G1/4 A-MALE (stud end DIN 3852-E G¼)
    • G½ B Male (EN837-1)
    • G¼ B-Male (EN837-1)
    • Sanitary Seal 1.5? Tri-Clamp®
    • Sanitary Seal 2? Tri-Clamp®
  • Shock & Vibration Resistance
    • 10g RMS 20-20,000Hz Vibration
    • 80g, 6ms Haversine Shock
