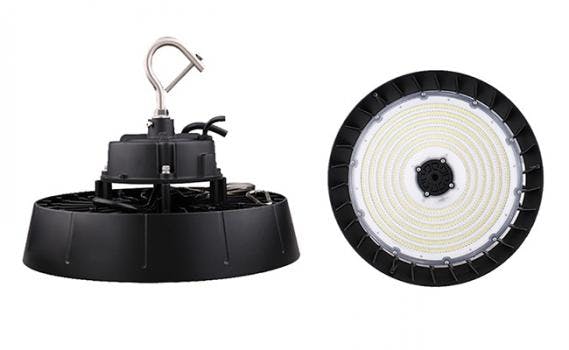

UFO LED Highbay with Networked Lighting Controls delivers maximum lighting efficiency for 15 to 25-ft mounting heights when replacing up to 400 W HID fixtures in either the U.S. or Canada.
Available in 5,000K with an 80+ CRI for excellent visual acuity and accuracy when working in manufacturing and warehousing applications. UFO LED Highbay fixtures are available in 100, 150, 200, and 240 W, providing 14,000 to 33,600 lumens operating at 140 lm/W. The die-cast aluminum housing, combined with its unique open center ventilated LED array, allows excellent heat dissipation resulting in high lumen maintenance over its service life. Its high-quality LED chips, powder coat finish, and stainless-steel screws provide a corrosion-resistant operation, enabling an exceptional 50,000-hour performance life.
The fixture is DLC Premium, UL/CUL listed, RoHS compliant, and is also NSF listed for food processing installations and is IP65 rating for wet location use. Two electronic driver options are available: one operating at 100–277VAC 50-60Hz and another at 100-347VAC 50-60Hz, for use in both the USA and Canada, respectively. 0 to 10V dimming function is included with both. UFO LED Highbay also comes with 4kV surge protection built into the fixture and a five-year warranty. Optional accessories include an emergency backup driver, microwave motion sensor, and remote-controlled sensor.
Each fixture is designed to accept a simple “twist-on” full-featured sensor that allows for simple occupancy sensing as well as daylight harvesting and dim to off functions. Also standard is a 12V DC power supply for operating optional network lighting controls.
Ideal for warehouses, manufacturing facilities, auditoriums, and gymnasiums, the UFO LED Highbay fixture is designed to operate at temperatures between -40° and 122°F. The fixture may be accepted for utility rebates in many markets.
