Municipal water system and industrial process engineers in search of an analyzer that accurately measures near-zero levels of chlorine will want to learn more about the plug-n-play, long-life DC80 De-Chlorination Analyzer which utilizes a zero-shift methodology to ensure stable and reliable chlorine measurement prior to effluent discharge.
When measuring near zero amounts of chlorine, conventional amperometric chlorine sensors are unstable, and this leads to inaccurate or inconsistent readings. In comparison, the DC80 De-Chlorination Analyzer utilizes a “zero-shift” methodology to provide accurate measurement and to protect total chlorine sensors from damage, which occurs when the water samples measured contain near-zero or zero levels of chlorine.
In wastewater treatment systems, for example, when monitoring for chlorine just before outfall, there can be no chlorine present and yet measurement is still necessary. When there is no chlorine present then the electrode becomes unstable and finally unresponsive. For this reason, the process of measuring de-chlorination itself becomes problematic. When all of the chlorine is removed then the sensor will provide an inaccurate reading after a few hours and fail after a few days still reporting zero chlorine
Problem solved with the DC80 De-Chlorination Analyzer: This next-gen total chlorine analyzer uses “zero shifts” technology to monitor near zero amounts of total chlorine. Using this method, some chlorine is actually metered into the sample shifting the zero from a near-zero chlorine concentration to a measurable value. The analyzer’s offset feature allows the metered value to be subtracted from the measurement.
The presence of chlorine in wastewater treatment effluent, both municipal and industrial, is a potentially harmful contaminant that affects plants and other aquatic life forms. The U.S. EPA requires the removal of dangerous levels of chlorine prior to effluent discharge.

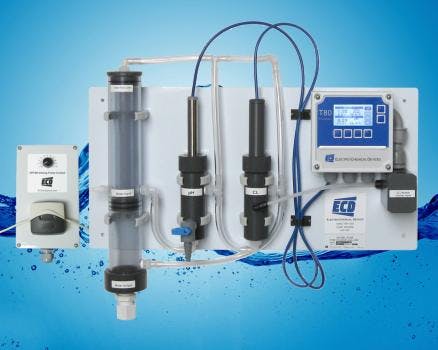

The DC-80 De-Chlorination Analyzer monitors chlorine in drinking water, wastewater, cooling water, and other de-chlorination applications from 0.05 to 20 ppm. Its mounted system includes built-in flow control, which eliminates the need for complicated plug-and-play design installs quickly right out of the box.
The DC80 features advanced panel pressure regulators and rotameters. Built-in automatic pH compensation for samples between 4 and 12 pH also eliminates the need for expensive reagents to reduce maintenance and life-cycle costs.
The analyzer’s total chlorine sensor is a three-electrode amperometric sensor with a gold cathode, silver halide anode and 304 stainless steel counter electrode. The counter electrode provides a stable base potential that minimizes drift for superior accuracy. The total chlorine sensor has a micro-porous membrane that allows ions to diffuse in and out of the sensor.
The analyzer’s pH sensor provides accurate compensation for samples between 4 and 12 pH, which eliminates the need for a sample conditioning system. The total chlorine sensor graphically displays both the total chlorine and pH levels for easy trend analysis.
The DC80 Analyzer is available with either 110-240 VAC or 24 VDC power. The standard configuration features dual measurements, two 4-20 mA outputs and three alarm relays. The user friendly DC80 also is available with an auto clean option that includes a solenoid actuated spray cleaner using either 30 psi process water or air. An easily adjusted timer controls the period and duration of the cleaning cycle.
- No Reagents Required: the CD80 DeChlorination Analyzer sensor technology is a reagentless design and keeps the cost of ownership low without having expensive reagents only inexpensive 3 to 5 ppm chlorine solution.
- Automatic Flow Control and Large Flow Tubes and Cells: greatly reduces clogs and blockages of the analyzer which is a common problem in other total chlorine analyzers and allows for easy cleaning.
- Panel Mounted System Plumb and Play Design: the Chlorine Dioxide Analyzer comes complete and is easy to install and ready to use.
- DC80 DeChlorination Analyzer Capability: (2) 4 to 20 mA outputs, MODBUS and/or HART communication, (3) Alarm Relays, 24 VDC or 110/220 AC Power.
- Auto Cleaning Option: The DC80 DeChlorination Analyzer can be ordered with an auto cleaning option to keep the chlorine sensor clean from contaminates for an extended period of time.
