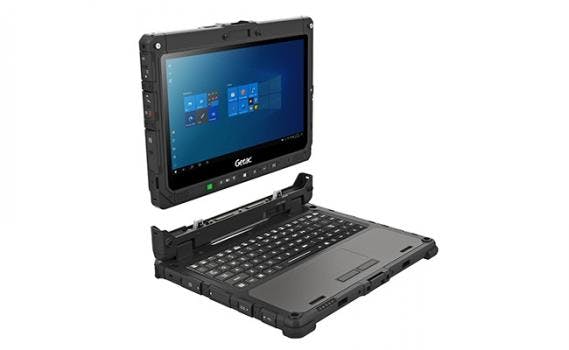

K120 Windows 10 Tablet

May 20, 2021
From its multi-functional tablet handle, attachable backlit keyboard to a variety of straps and harnesses, Getac's K120 tablet provides adaptability.

Giving field force and manufacturing workers state-of-the-art performance, multitasking capacity, diverse connectivity options, and the ability to go anywhere and do anything under any conditions is the next-generation K120 Windows 10 tablet.



In addition to keeping its predecessor's features (listed in the specs below), the K120 features a suite of security features and multifactor authentication management including Intel vPro Technology, TPM 2.0, HF RFID reader, smart card reader, fingerprint reader, and Windows Hello. Backlighting has also been added to the five programmable buttons located on the bezel below the screen.



The K120 runs on Intel 11th Generation quad-core i5/i7 processors (codename “Tiger Lake”), standard 16GB RAM (upgradeable to 32GB), and user-removable PCIe solid-state memory modules available in sizes of up to one terabyte. Upgrading from 8th Generation CPUs gives mobile workers across the board access to 11th Gen’s transformative new core and graphics architectures, Al-assisted acceleration, and leading-edge connectivity, coupled with double the previous generation standard RAM, results in blazing fast computations and the ability to multitask. The use of standard PCIe technology with up to 1GB/s per lane in place of 0.6GB/ maximum speed SATA SSDs significantly reduces read/write wait times for all types of applications.



Integrated into the new 11th Gen CPUs, Intel’s Iris Xe Graphics are a quantum improvement over the prior generation’s Intel UHD graphics. Refresh rates are faster, the color definition is more pronounced, and significantly improved processing speeds enables rapid display and seamless creation of detailed schematics and architectural drawings.



The K120 offers an increase in ingress protection rating from IP65 to IP66. While an IP65 rating certifies a device as protected from water projected from a nozzle. IP66 means a device is secure against heavy seas or powerful jets of water. Another significant K120 upgrade is receiving MIL-STD-810H certification in place of the 810G certification.





The next-generation Getac K120 will be available in July of 2021.

The K120 next generation retains its predecessor’s features:

  • LumiBond 2.0 12.5-in., 1,200 nits, 1,920 x 1,080-pixel, multi-mode (regular touch, glove, and pen) display with Getac sunlight readable technology and optional digitizer, its
  • fully rugged magnesium alloy and impact-resistant polymer chassis
  • hot-swappable battery technology
  • multi-functional hard handle
  • front and rear cameras
  • a wide variety of vehicle and office docks, straps, and harnesses
  • 6-ft (1.8-m) drop resistance
  • operating temperature range of -29° to 63°C (-20° to 145°F).
  • 11th Gen Intel Core i7 vPro Processor
  • Intel Iris Xe Graphics

Operating
System:

Windows 10 Pro

Mobile Computing
Platform

Intel Core i5 Technology
Intel Core i5-1135G7 Processor
Max. 4.2GHz with Intel Turbo Boost Technology
- 8MB Intel Smart Cache
?
Platform Options:
Intel Core i5 vPro Technology
Intel Core i5-1145G7 vPro Processor
Max. 4.4GHz with Intel Turbo Boost Technology
- 8MB Intel Smart Cache
?
Intel Core i7 Technology
Intel Core i7-1165G7 Processor
Max. 4.7GHz with Intel Turbo Boost Technology
- 12MB Intel Smart Cache
?
Intel Core i7 vPro Technology
Intel Core i7-1185G7 vPro Processor
Max. 4.8GHz with Intel Turbo Boost Technology
- 12MB Intel Smart Cache

VGA Controller

Intel Iris Xe Graphics

Display

12.5 in. IPS TFT LCD FHD (1,920 x 1,080)
Protection film
1,200 nits LumiBond display with Getac sunlight readable
Capacitive multi-touch screen

Storage &
Memory

16GB DDR4
Optional:32GB DDR4

256GB PCIe NVMe SSD
Optional: 512GB / 1TB PCIe NVMe SSD

Keyboard

Power button

5 tablet programmable buttons

Pointing
Device

Touchscreen
- Capacitive multi-touch screen
- Optional: Dual-mode touchscreen (multi-touch and digitizer)

Expansion
Slots

Optional: 1D/2D imager barcode reader
Optional: Serial port (9-pin; D-sub), or USB 2.0 port

I/O Interfaces

Tablet:
FHD webcam x 1 x
8M pixels auto focus rear camera x 1
Headphone out / mic-in combo x 1
DC in Jack x 1
USB 3.2 Gen 2 Type-A x 1
Thunderbolt 4 x 1
LAN (RJ-45) x 1
HDMI x 1
Docking connector x 2
Optional: Windows Hello face-authentication camera (front-facing) x 1 x
RF antenna pass-through for GPS, WLAN, and WWAN

Optional Keyboard Dock:
DC in Jack x 1
USB 3.2 Gen 1 Type-A x 3
LAN (RJ45) x 1
HDMI x 1
Display Port 1.2 x 1
Serial port (9-pin; D-sub) x 1
Optional: RF antenna pass-through for GPS, WLAN and WWAN

Communication Interface

Intel Wi-Fi 6 AX201, 802.11ax

10/100/1000 base-T EthernetBluetooth (v5.2)iOptional: Dedicated GPS xiiOptional: 4G LTE mobile broadband with integrated GPS xii

Security
Features

TPM 2.0

Kensington LockOptional: Intel vPro TechnologyOptional: Smart Card reader or HF RFID reader ii, iii or fingerprint reader iv

Power

AC adapter (90W, 100-240VAC, 50 / 60Hz)
Li-Ion smart battery (11.1V, typical 2100mAh; min. 2040mAh) x 2
LifeSupport battery swappable technology
Optional: High capacity battery (14.4V, typical 3450mAh; min. 3300mAh) x 2

Dimension &
Weight

Tablet:
329.5 x 238 x 24 mm (12.97” x 9.37” x 0.94”)
1.7Kg (3.75 lbs)v

Tablet+Optional Keyboard Dock:
340.5 x 307.5 x 47 mm (13.40” x 12.10” x 1.85”)
3.13Kg (6.9 lbs)v

Rugged
Features

MIL-STD-810H certified
IP66 certified
MIL-STD-461G certifiedvi
Vibration & 6 feet (1.8m) drop resistantviii, ix
e-Mark certified for vehicle usage
Optional: ANSI / UL 121201, CSA C22.2 NO. 213vii

Environmental Specifications

Temperatureix:
- Operating: -29°C to 63°C / -20°F to 145°F
- Storage: -51°C to 71°C / -60°F to 160°F
Humidity:
- 95% RH , non-condensing

Pre-installed
Software

Getac Utility
Getac Camera
Getac Geolocation
Getac Barcode Managerxi
Optional: Absolute Persistence

Accessories

Battery (11.1V, typical 2100mAh; min. 2040mAh)
AC Adapter (90W, 100-240VAC)
Capacitive Stylus

Optional:
Carry Bag
Battery (11.1V, typical 2100mAh; min. 2040mAh)
High Capacity Battery (14.4V, typical 3450mAh; min. 3300mAh)
Multi-Bay Charger (Dual Bay)
Multi-Bay Charger (Eight-Bay)
AC Adapter (90W, 100-240VAC)
Office Dock AC Adapter (120W, 100-240VAC)
MIL-STD-461 Certified AC Adapter (90W, 115-230VAC)
Vehicle Adapter (120W, 11-32VDC)
Digitizer Pen
Capacitive Stylus
Protection Film
Tablet Hard Handle
Hand Strap
Shoulder Strap (2-point)
Shoulder Harness (4-point; handsfree)
Keyboard Dock
Vehicle Dock
Office Dock
Spare SSD Kit
