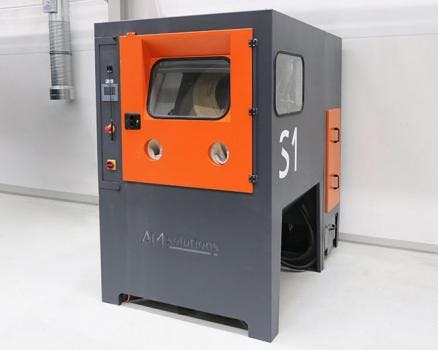

S1 Smart System for 3D Post Processing

Feb. 17, 2021
AM Solutions' smart, multi-talent 3D printer is industry 4.0 ready and aids in the removal of powder and cleaning of printed components.

The S1 sets new standards in the de-powdering and cleaning of additively manufactured parts. The smart plug-and-play solution offers numerous innovative features, coupled with a user-friendly and flexible operation for highly efficient and reliable processing with consistently high quality.



Besides an automatic or optional manual shot blasting, the S1 enables the automatic and effective removal of residual powder after the printing. The constant rotation of the workpieces during the cleaning process ensures repeatable and consistent shot-blasting results without damaging the workpiece surface. This applies equally to plastic and metal parts providing an excellent basis for subsequent manufacturing operations.



Because of its small footprint and sturdy design, this machine can be easily integrated into any manufacturing line.

  • Dimensions of blast chamber:
    • Width x Depth x Height: 1,072 x 1,234 x 948 mm
  • Basket volume: 2-25 Liter Suction blast gun 2x SPI 28
  • Blast/air nozzle diameter: 10 mm / 4 mm High-performance impulse cartridge filter AMF-S1
  • Air flow/power: 1,000 m³/h
  • Supply voltage standard: 400V, 50 Hz, 3Ph N/PE
  • Control voltage: 24V DC
  • New basket design for optimal distribution and circulation of the parts
  • Specially developed wear protection lining made of non-staining anti-static polyurethane
  • ATEX conformity
  • Ergonomic and safe machine handling
  • Quick change between manual and automatic processing
  • Automatically pivoting blast nozzles for contamination-free loading and unloading
  • For loading and unloading the basket swivels to the generous front opening, but remains completely within the blast chamber
  • Integrated, highly efficient media cleaning and easy media change
  • Best process stability and visualization thanks to state-of-the-art software/hardware
  • Industry 4.0 ready
