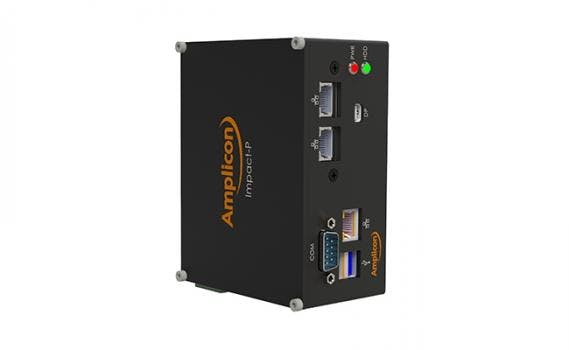

One of the smallest industrial embedded PC in the marketplace, the Amplicon Impact-P Series feature the Intel Apollo Lake ATOM E3900 generation processors, supported by high bandwidth DDR3L 1600MHz memory, in an ultra-compact housing that is milled out of solid aluminum. The tiny Impact-P is a fanless, DINrail-mountable, low power embedded system, which has been designed to provide convenience and versatility, with a unique set of features that are unusual in an industrial PC of miniature size.



The Impact-P's specified operating temperature range is from -20 to 70°C, with wide temperature RAM and SSD in the design. The system can be fully customized, with selections that include +9 to 36VDC or POE powered, Dual POE+, multiple I/O configurations, custom branding, chassis color, etc. OS support includes Linux, Windows 10, and Windows 10 IoT.



The Impact-P range of embedded PC's is suited to low power applications such as transport, utilities and security, and situations requiring offsite connectivity or remote operation. The unit can also be manufactured in custom dress for uniformity with a company's other branded OEM products. With an extremely compact design and weighing less than 2 lb., this embedded controller is ideal for any installation where space is severely limited.

  • Intel Atom x5-E3930 Dual Core Processor with 2M cache, 1.3GHz (1.8GHz), 6.5W 2GB DDR3L (max 8GB) LAN: 1 x Intel 10/100/1000 network connection (supports PXE and WoL) 2 x 10/100/1000 POE+ LAN (IEEE 802.3at, up to 25.5W) with 64GB SSD storage.
  • Expansion: 1 x Full-size Mini PCIe (PCIe/USB 2.0) 1 x M.2 B key 2242. (PCIe/USB 2.0/SATA 3.0)
  • External Interfaces: 1 x DP++ 2 x USB 3.0 1 x RS232/422/485 1 x Intel GbE RJ45 (I211AT) 2 x Isolated POE+ LAN (max 25.5W per port)
