12009 COM Express Compact Type 6 Evaluation Board

Oct. 7, 2022
Sealevel Systems' 12009 COM Express Compact Type 6 Evaluation Board reduces costs for new product introductions.

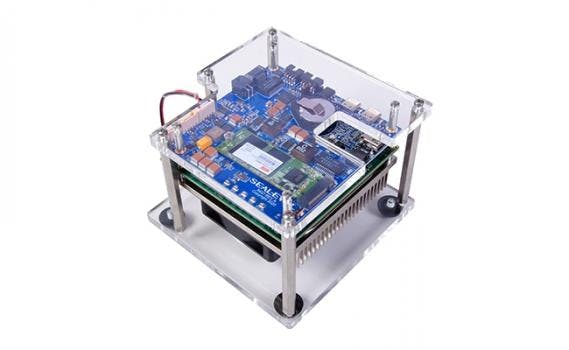

The 12009 COM Express Compact Type 6 Evaluation Board enables accelerated development of embedded computing prototypes, dramatically expedites electrical hardware engineering, and reduces costs for new product introductions. At 3.7 in. (95 mm) square, the 12009 is identical in size to a Compact Type 6 COM Express module. Designed to meet a wide variety of application needs, the 12009 evaluation board supplies a diverse I/O mix and robust processing support. Standard I/O includes Gigabit Ethernet, USB 3.0, USB 2.0, GPIO, RS-232, and Mini DisplayPort. The carrier board is designed for the congatec conga-TC370 COM Express family, with support for 8th generation Intel Core processors, up to 64 GB DDR4 RAM, and TPM 2.0 support. The 12009 features a wide operating temperature range of 32 to 158ºF (0 to 70ºC) and is powered via a locking, four-position Molex Micro-Fit connector.



The complete evaluation kit includes a Type 6 module with Intel Core i3-8145UE CPU and 8 GB DDR4 RAM. Additionally, to improve the development process, the kit includes a 128GB M.2 SATA SSD module, desktop power supply, and a wide variety of cables to facilitate connections to serial and Ethernet ports and optional fans. A power button and power-indicating LED are also included.

  • (2) 10/100/1000 Gigabit Ethernet Headers
  • (2) USB 3.0 Type-C Connectors
  • (3) USB 2.0 Headers
  • (4) GPIO Headers
  • (1) RS-232 Header
  • (1) UART Interface
  • (1) Mini DisplayPort Connector
