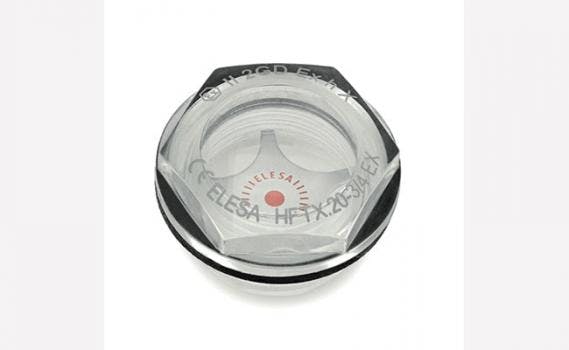

The ELESA ATEX line has been recently enlarged with the HFTX-EX oil level indicator in a transparent technopolymer with an anodized aluminum star-shaped contrast screen. It is characterized by a magnifying lens with a particular shape to increase and improve visibility, even from side positions.
Other products in the line include plugs, breather caps, oil level sight glasses, and oil lever indicators. These products are designed for applications in potentially explosive atmospheres in pneumatic, hydraulic, electrical, and mechanical systems. They comply with health and safety requirements according to the 2014/34/UE ATEX European Directive (explosive atmospheres) for equipment in Group II, category 2GD.
A potentially explosive atmosphere exists when a mixture of air gases, vapors, mists or dust combine in a way that can ignite under certain operating conditions.
The laser-engraved mark on the products and the declaration of conformity certify that the products of this line are manufactured in full compliance with requirements and provisions of the European Union Directive and submitted to procedures for conformity assessment.
- Material: Transparent polyamide-based (PA-T) technopolymer. Avoid contact with alcohol or detergents containing alcohol.
- ?Star-shaped contrast screen: Matte anodized aluminum with a red central level point.
- Packing ring: NBR synthetic rubber.
- Maximum continuous working temperature: 80°C.
- ?ATEX directive compliance:
- HFTX-EX level indicators series comply with the Essential Health and Safety Requirements of the European ATEX Directive 2014/34/ EU (explosive atmospheres) for Group II devices, category 2GD.
- Indicators have “h” protection mode and can be mounted in devices protected by means of immersion in liquid "k”, without lowering their protection degree.
- II 2GD Ex h X: is the level indicators identification marked on the HFTX-EX product according to ATEX
- II: a group of devices/components suitable for use in surface industry except for mines.
- 2: ATEX category corresponding to "high" protection level
- G: explosive atmosphere of flammable gases or vapors.
- D: explosive atmosphere of combustible dusts.
- Ex: device/component protected against the ignition of explosive atmospheres.
- h: protection mode for non-electric devices / components.
- X: special conditions and limitation of use (see Instructions for use).
- Ambient and/or fluid temperature: -20 ÷ +80°C
