    DPC Differential Pressure Mass Flow Controller

    March 14, 2020
    Related To: AALBORG Instruments & Controls, Inc.
    66677745c40378000847a3df 830 350

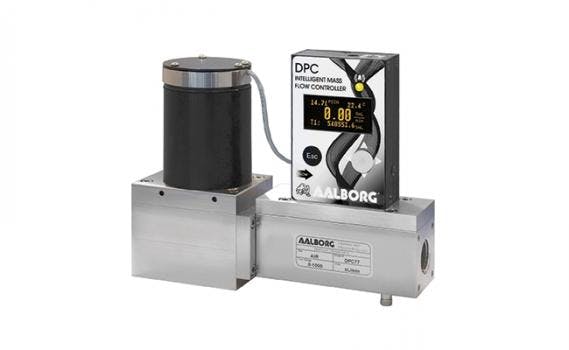

    DPC differential pressure/mass flow controllers are available with high maximum flow ranges of up to 1,000 L/min of gases.



    The models simultaneously display mass flow, volumetric flow, pressure, and temperature. The DPC57, DPC67, and DPC77 are designed to control gases 200, 500, and 1,000 L/min flow ranges respectively. Standard accuracy is ± (0.5% RD + 0.2% FS). Quick (100 to 150 ms) response time is inherent.



    Multi-Gas functionality support provides for 90 different gases and gas mixes. User-defined mixture functionality allows users to create and store up to 20 custom gas mixes with up to 5 different gases each. Optional local high contrast OLED graphic display with joystick control and Modbus RTU network interface with isolated RS485 transceiver are available.



    Free, easy-to-use configuration and calibration software (RS-232/RS-485) and a programmable setpoint table with ramping up/down capability of up to 16 steps are included. Also, these high-flow units come with 2 programmable mass flow rate totalizers; high, low, or in-range alarms with preset action delay for mass flow, temperature, and pressure functionality.

    • Displays mass flow, volumetric flow, pressure, and temperature
    • Support for 90 different gases and gas mixes
    • Create and store 20 custom gas mixes with up to 5 different gases each
    • 100 to 150 ms response time
    • Standard accuracy ± (0.5% RD + 0.2% FS)
    • 200:1 turn-down ratio
    • 2 programmable mass flow rate totalizers
    • High, low, or in-range alarms with preset action delay for mass flow, temperature, and pressure
    • User-programmable mass flow rate Pulse Output
    • Extensive self-diagnostics with status LED or OLED indication
    • All 3 user-selectable analog input and output interfaces are standard
    • 2 user-selectable digital communication interfaces are standard
    • User-programmable solid-state relay with latch option
    • Universal 12 to 26V DC power supply input
    • Free, easy-to-use configuration and calibration software
    • Programmable set point table with ramping up/down capability up to 16 steps
