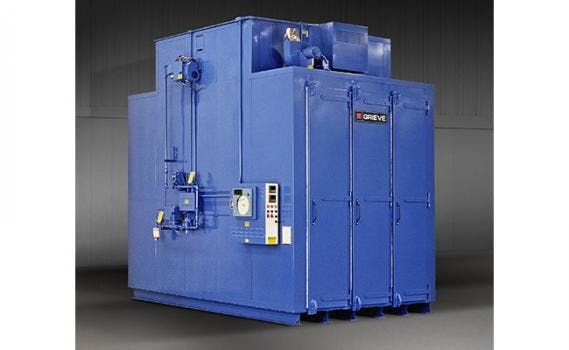

No. 942 is a 350°F (177°C), a special walk-in oven from Grieve, currently used for curing epoxy at the customer’s facility. Workspace dimensions of this oven measure 84” W x 144” D x 108” H. 400,000 BTU/hour are installed in a modulating natural gas burner, while a 12,000 CFM total are provided by two (2) 5-HP recirculating blowers providing combination airflow to the workload.
This Grieve oven features 4” insulated walls, aluminized steel interior, and exterior and three (3) independent doors for access to workspace on front with standard double doors on rear. Additional features include 2” insulated floor with three (3) pairs of truck wheel guide tracks. The oven is raised above factory floor level on 6” I-beams.
The oven features all safety equipment required by IRI, FM and National Fire Protection Association Standard 86 for gas-heated equipment, including a 325 CFM, 1/3-HP powered forced exhauster.
Controls on the No. 942 include a digital programming temperature controller and 10” diameter circular chart recorder.
