Wireless Gateway Supports Wired and Wireless Sensors

Oct. 11, 2019

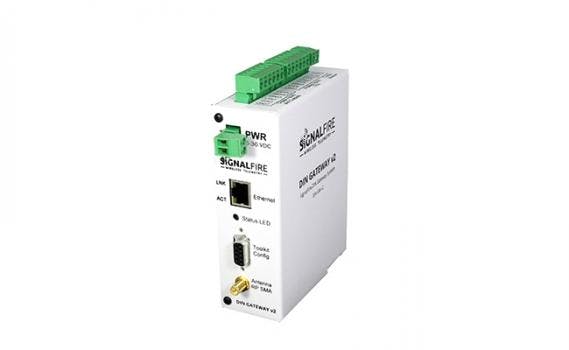

DIN Gateway V2, a 900 mHz wireless gateway with an integrated I/O capability for easy network connectivity of wireless and wired sensors, offers integrated Ethernet and built-in automation. This DIN Gateway V2 features 2 digital inputs, 2 digital outputs, 3 analog inputs and an optional gateway output module with 8 analog and 2 digital outputs. The 3 analog inputs are useable for any measurement or control device while the digital outputs are useable for annunciation or basic on/off applications. This edge computing type capability in the wireless gateway enables discrete automation functionality.



This enhanced gateway, designed for Class 1 Division 2 Groups C and D locations, supports wireless configuration up to 240 remote nodes at 3+ mile typical range and interfaces via RS-232 Modbus RTU or Modbus-TCP (Ethernet). This gateway enables wireless configuration of remote nodes and HART devices via PACTware or Radar Master and automatically configures as a star or mesh network.



The compact DIN mount gateway features low power consumption, integrated high-gain 5dB omnidirectional antenna, and 500 mW radio operating at 902 to 928 MHz license-free ISM band. The optional expansion output module provides an additional 8 analog outputs and 2 digital outputs.
