2700 Medium Duty Conveyor

Oct. 24, 2022

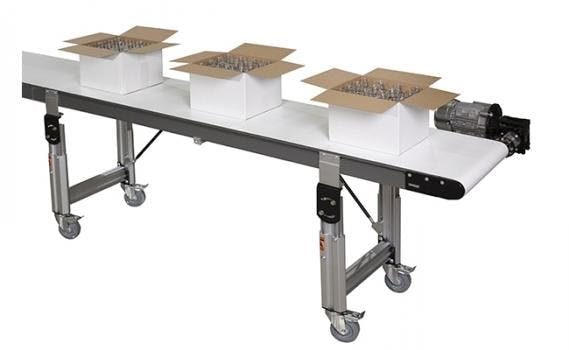

The Dorner 2700 Medium Duty Conveyor has been designed to safely convey up to 150 lb. (68 kg).

Carrying heavier products for industrial automation and packaging applications, the 2700 Medium Duty Conveyor is for palletizers, multi-lane processing, case and tray handling, and end-of-line packaging. It has been designed to safely convey up to 150 lb. (68 kg). It also has extended widths between 26 in. (66 cm) and 36 in. (91.4 cm). The conveyor features v-guiding and precision belt tracking for smooth, maintenance-free performance.



The conveyor can be wider than it is long, enabling an AMR to dock sideways for more efficient and faster loading and unloading. The precise rack and pinion belt tensioning allow for fast and simple tensioning, larger, sealed for life bearings reduce maintenance, and a 0.63 in. (16 mm) high speed nose bar transfer tail is for precise transferring of small packages.

  • Flat Belt End Drive, Mid Drive, and iDrive models available
  • Loads up to 150 lb. (68 kg)
  • Belt speeds up to 400 ft/min (122 m/min)
  • Belt widths: 8 to 36 in. (203 to 914 mm)
  • Conveyor lengths: 20 in. to 24 ft (508 to 7315 mm)
  • 2.4 in. (60 mm) diameter drive and idler pulleys turn approximately 7.4 in. (189 mm) of belt per revolution
  • V-groove bedplate with guided belt provides belt tracking, even under demanding side load applications
    • Cam tracking standard on Non V-Guided belt conveyors
  • 0.59 in. (15 mm) diameter integral drive shaft with auxiliary shaft location options
  • Continuous Duty iDrive Motor
    • 24 Volt DC gearmotor easily powered by battery
