Outdoor Safety Laser Scanner

June 8, 2019

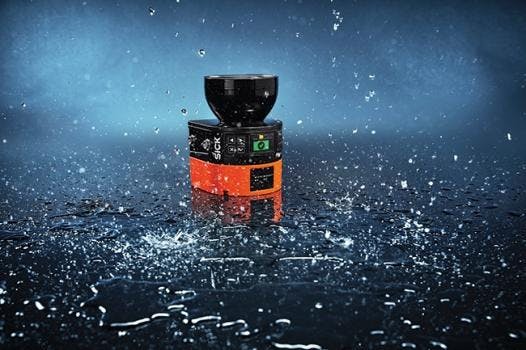

SICK's outdoor scanner keeps working in all weather conditions.

The outdoorScan3 allows automated guided vehicle (AGV) systems to navigate safely through outdoor industrial environments. Thanks to its innovative outdoor-safeHDDM scanning technology, outdoorScan3 works safely and reliably in all weather – sun, rain, snow, or fog – thus closing a major gap in the automation of industrial processes.



Current safety laser scanners enable humans and machines to work safely alongside one another in industrial environments by reliably protecting stationary and mobile applications. Now, with the outdoorScan3, SICK is launching the first safety laser scanner that allows certified safety sensor technology to be used reliably in outdoor applications too.



This opens up huge potential for automating and increasing the efficiency of intralogistics production processes – and brings the vision of a self-managed value chain in the spirit of Industry 4.0 one step closer to reality.



The outdoorScan3 is characterized by an exceptional ruggedness when subjected to sunlight, rain, snow, and fog. This is accomplished thanks to a new development: outdoor-safeHDDM scanning technology. This technology means the laser scanner can work without errors when exposed to sunlight with an illumination intensity of up to 40,000 lux.








In addition, the intelligent software algorithm of the outdoorScan3 detects rain and snow, easily filtering out these environmental influences. For example, rain up to a precipitation intensity of 10 mm/h can be filtered out. Even in fog with a meteorological visual range of up to 50 m, the outdoorScan3 detects all obstacles with total reliability, due to its special fog function.



AGV systems facilitate a flexible and productive material flow and will be a key technology in automation concepts of the future. However, these systems can only be used in a working environment shared by humans and machines with the presence of safety laser scanners. With the outdoorScan3, AGV systems will be able to perform tasks outdoors – with no physical partitions whatsoever and without having to significantly lower their speed.



The outdoorScan3 is already in use on passenger boarding bridges and in protecting and navigating AGV systems. A safety laser scanner with a broad range of applications and a whole host of other potential uses, the outdoorScan3 is now available from SICK USA.

Features:

  • High productivity due to safe human-machine cooperation in outdoor areas
  • Outstanding availability even in harsh weather conditions
  • Flexibility for safe, customized automation processes
  • User-friendly and suited for outdoor use
  • Easy access to diagnostic data
  • Precise localization due to highly precise measurement data
  • Continuous material flow due to intralogistics processes between buildings
