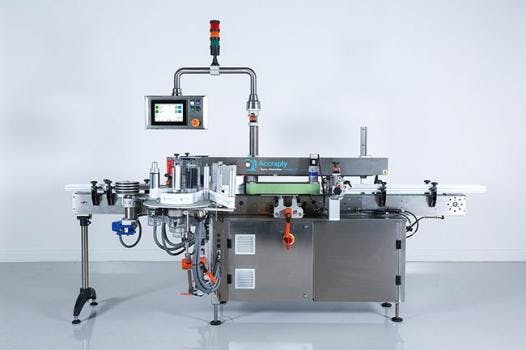

The Sirius MK6 is a heavy-duty, modular labeler designed for high-speed label applications featuring repeatable, toolless changeovers to reduce waste and save time.
Designed for label applications with advanced machine capability requirements, the Sirius MK6 includes Accraply’s SmartLink HMI, providing easy access to efficiency reporting, preventative maintenance alerts, and self-diagnosing software. Through this smart HMI, overall equipment effectiveness can also be measured, allowing operators to easily identify and order parts.
The labeler provides numerous benefits including an enhanced control system, a compact design, and precise capabilities for front, back, and wrap applications for increased accuracy and improved product handling.
Combined with the Comet series applicator, the Sirius MK6 provides precise, consistent label placement that is ideal for the pharmaceutical, food, contract packaging, automotive and industrial industries.
Production Rates:
- Up to 300 products per minute depending on product and label sizes.
Electrical Requirements:
- 220V/240V single-phase AC, 50/60 Hz. Special electrical options are available on request.
Air Requirements:
- Air required for some overprinters and security systems.
Weight:
- 320 kg / 705 lb.
Product Capacity:
- Maximum Diameter 100 mm / 3.9 in.
- Maximum Height: 350 mm / 13.75 in.
- Minimum Height: 20 mm / 0.75 in.
- Maximum Width: 200 mm / 7.8 in.
- Minimum Width: 15 mm / 0.6 in.
Label Capacity:
- Maximum Web Width: 305 mm / 12 in.
- Minimum Web Width; 10 mm / 0.4 in.
- Maximum Label Length: 330 mm / 13 in.
- Minimum Label Length: 10 mm / 0.4 in.
Details:
- Precise labeling and sleeving capability for front, back and wrap labeling applications.
- Servo driven conveyor, stabilizer, labeling heads, and wrap system to provide increased accuracy and product handling flexibility. Synchronized for perfect speed matching the labeling and sleeving application and control systems work effectively to control even the most difficult applications.
- Heavy-duty conveyor and stainless-steel base frame to allow for years of dependable service.
- Operator friendly system providing cost-effectiveness with ease of use, set up, and maintenance. Complete with a quick ‘no tool’ adjustment for fast and easy repeatable product changeover.
- Centralized controls pivot for convenient operation.
- CE and UL compliant versions available.
- Enhanced control system incorporating a single color touch screen HMI system offering multi-level password security.
- HMI video tutorials covering maintenance, changeovers, and alarms.
- Machine efficiency reporting on HMI.
- HMI-based maintenance schedule and spare part purchase requisition.
- CFR21 pt 11 compliant HMI – available HMI Audit functionality.
- Compact design minimizes footprint.
- Fully enclosed and interlocked guarding.
- Worldwide support network.
