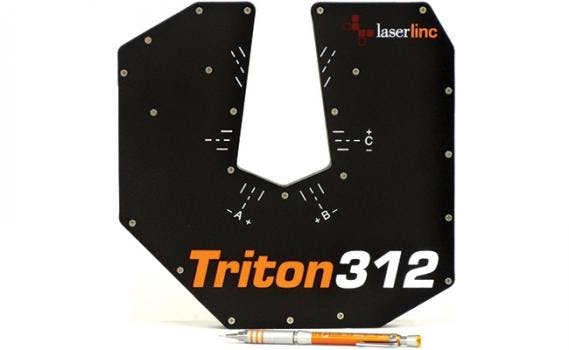

The Triton312 and Triton330 micrometers offer the advantages of three-axis measurement in a very compact package with exceptional accuracy. The Triton331 and Triton360 models add a fast measurement rate and with the 360, up to a two-inch [50.8 mm] measurement range. For in-process measurement of non-round profiles, products with varying diameter, and flaw detection applications, the latter models can be upgraded to the fastest measurement rates of any scanning laser micrometer: 4,000 Hz per axis (12,000 Hz aggregate). For discrete part measurement, a higher measurement rate facilitates faster inspection cycle times.
Triple-axis models share the following characteristics:
- Measure any material, even clear and translucent products (glass logic is a software option included at no charge with all systems)
- Use in-process or for benchtop/offline applications
- Measurement accuracy and micrometer operation are unaffected by line speed
- Mount in any orientation
- Multiple mounting surfaces with precision locating holes for flexible mounting, but also for flexible attachment of accessories
- Choose from four different models
- Can be used with the Total Vu™ HMI for complete product and process monitoring, reporting, and control
- Can be used with a SmartLinc™ processor for an intelligent interface via industrial communication protocols
- Available with Ethernet-based NetLinc™ signal interface
- Mounting adapters are available to deploy effective six-axis measurement for superior flaw detection and average diameter accuracy
