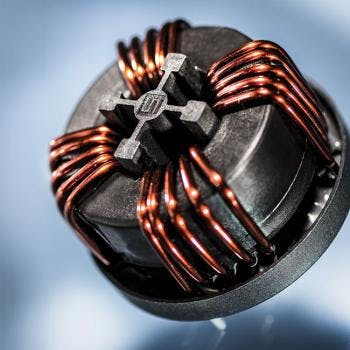

SCHURTER expands its successful range of PCB mount current-compensated chokes with a series for 4- wire high-current applications. The series is available for three phase applications with neutral line at rated currents from 10 A to 40 A. Due to the open design, the chokes are particularly compact and lightweight.
The power system portion of an electronic equipment is increasingly configured on a printed circuit board using discrete components. Dense integration of these components to achieve a compact design, increases thermal problems due to the resulting high currents on the PCB. EMC interference can affect adjacent modules due to the lack of spatial separation. Therefore, a compact filter on the PCB with discrete components is often the best solution. A current-compensated choke with capacitors is the most efficient method of suppressing EMC interference and the DKIH-4, with its nanocrystalline ring core, provides much greater inductance in a smaller footprint over conventional ferrite core chokes.
The new DKIH-4 series is suitable for three phase applications with neutral line from 10 A up to 40 A. Lightweight and compact, the THT mount common-mode chokes are designed according IEC 60938 and rated 500 VAC or 760 VAC, making them suitable for almost any applications. Temperature range is -40 °C to +100 °C. In addition to the standard versions, customer-specific pin configurations or variants can be created on request.
