WDA series DIN Rail Power Supplies

Oct. 7, 2022

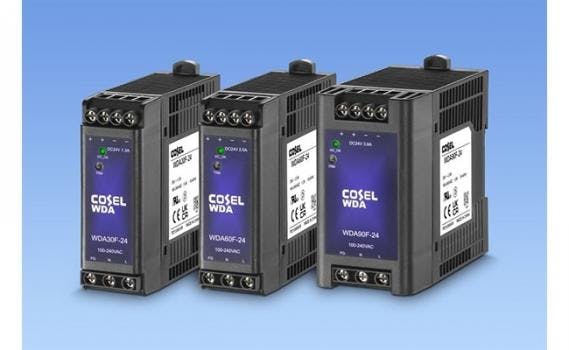

COSEL's WDA series is low profile for space optimization.

Suitable for a wide range of applications, the WDA series consists of three DIN Rail AC/DC power supplies for industrial applications. It offers a low-profile design, a wide input voltage range of 85 to 264V, and electrical performance in three power levels: 30W, 60W, and 90W. The three models are designed for DIN-Rail attachment and are compatible with the DIN EN60715TH 35 standard (35 × 7.5 mm or 35 × 15 mm), the top hat shaped DIN rail. Reducing energy consumption and power dissipation, the models also feature overvoltage protection with latching and overcurrent protection with automatic recovery.



The WDA30F is available in four different output voltages, 5V, 12V, 24V, and 48V within a power level of 30W and a typical efficiency of 88%. All models include a potentiometer, making possible to finely trim the output voltage when installed. A DC OK LED visually confirms the output status. Optimized for convection cooling, the WDA series can be operated within an ambient temperature range of -4 to +158°F (-20 to +70°C).



All three ranges have a 3,000VAC input to output isolation voltage, a 2,000VAC input to ground rating, a 500VAC output to ground, and a leakage current below 0.75 mA (AC IN 240V).

  • For DIN (35mm) rail products
  • Wide temperature range -4 to +158°F (-20 to +70°C, derating is required)
  • Built in overcurrent protection, overvoltage protection circuits
  • Low power consumption at no load
  • Universal input (AC85 to 264V, derating is required)
