Handscope Portable Oscilloscope Model OX 5042

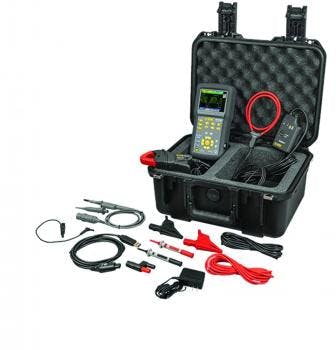

The compact, shockproof, Handscope can be comfortably held in one hand. The Kits contain many additional items including AC Current Probes as outlined in the descriptions below. The Handscope is an ergonomically designed instrument with a full-color display and LED backlighting for precise, crisp data display. Integrated help screens are always available to make it simpler to use.



The Model OX5042 is equipped with 2 fully isolated 600V CATIII-rated channels and combines three instruments in one:

• 40MHz oscilloscope, range 5mV to 200V/div
• Dual independent 8000-count multimeter
• Built-in harmonic analyzer out to the 31st harmonic (fundamental between 40Hz and 450Hz)



2MB of storage is available for recording data. In the multimeter mode, storing graphic recordings of 2,700 measurements from 5 min to 1 month is possible. Isolated USB communication with the SCPI protocol is available. This makes it simple to program the instrument remotely with the supplied SX-METRO software. The Handscope is designed for both field and lab use supplied with current and voltage measurement probes and has a 3-year warranty.



It is an ideal replacement for the discontinued Fluke Model 43B Power Quality Analyzer.

• Two fully isolated inputs 600V, CATIII rated channels
• Scope, Multimeter, and Harmonics analysis modes at the press of a button
• Measure and display voltage and current measurements simultaneously
• Measure and display voltage and current harmonics simultaneously
• 8-hours of battery life
• Rechargeable batteries with charger isolated from the input channels for improved accuracy and safety
• Full-color dual-channel 3.5-in. LCD screen
• Stores up to 100 screenshots viewable to the display

CHANNELSInputs / Bandwidth2 X 600V Isolated channels / 40MHzInput Impedance1M? ± 0.5%, 17pFINTERFACEScreen SpecificationsColor 3.5-in. TFT LCD 320 x 240 – LED BacklightingDisplay Mode2,500 real acquisition points on screenTraces On Screen2 Traces + 2 References + memory trace or Math calculationFront Panel Control24 keysVERTICALVertical Sensitivity5mV to 200V/div and up to 156?V/div in vertical zoom mode (12-bit converter) – Accuracy  ± 1%Max Input Voltage600Vrms CAT III – Derating -20dB per decade from 100kHzHORIZONTALTime Base Speed25 ns/div to 200 s/div. – accuracy 0.1-Roll mode from 100 ms to 200 s/divHorizontal ZoomZoom factor : x1, x2, x5TRIGGERModeOn all channels: Auto, Triggered, One-shot & trigger RollTypeEdge, Pulse width (20 ns to 20 s)CouplingAC or DC (dependent on the coupling of the triggering channel)- HF, LF, or noise rejectionSensitivity? 1.2 divisions p-p up to 40 MHzDIGITAL MEMORYMax. Sampling Rate2GS/s in ETS – 50MS/s in Single Shot Mode on each channel (9 bits)Memory Depth2,500 points/channelMemory Capacity2MB for storing various types of files: trace, text, configuration, image filesGLITCH ModeDuration ? 20ns – 1,250 MIN Max pairsDisplay ModesEnvelope, Averaging (factors 2 to 64), and XY (vector)OTHER FUNCTIONSMath FunctionsChannel inversion,, +, -, x, / and (adjustable scaling)Automatic Measurement18 time, level, phase measurementsMultimeter Mode2 channels, 8,000 counts + Min and Max bar graph – TRMS – graphic recording of 2,700 measurements (5 min to 31 days)AC, DC, AC+DC Voltages600mV to 600VRMS, 800mV to 800V DC: accuracy 2% R + 20cts Bandwidth 50kHzActive Power and PFSingle phase-Balanced 3 phase, with or without Neutral, simultaneous display of currentResistance, Temperature, Capacitance, Frequency, Speed Rotation, and Diode TestHarmonic Analyzer ModeMulti-Channel Analysis2 channels, 31 orders, fundamental from 40 to 450HzGENERAL FEATURESInterfaceIsolated USB, SX-Metro software includedBatteries6 LR6 or 6 AA Rechargeable 9.6V NiMH battery pack, External chargerCharging TimeExternal power adapter, 98 to 264V AC (50/60Hz) 2 hrs 30 min when OFFBattery lifeUp to 8 hrs 30 minDimensions (L x W x H)8.43 x 4.33 x 2.24 in. (214 x 110 x 57 mm)Weight2.65 lb. (1.2 kg)Altitude Operating2,000 m (6,560 ft)Operating Temperature32 to 104°F (0 to 40°C) ?80% RHStorage Temperature-4 to 140°F (-20 to 60°C)IP RatingIP54 per IEC 60529SafetyIEC/EN 61010-1 (1000V CAT II; 600V CAT III), IEC 1326-1
